Product info
-
Technical data

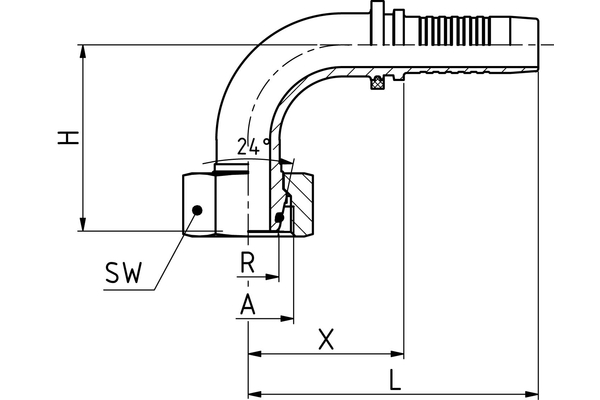

DN: 06 Size: 04 Inch: 1/4 Thread + standard: Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series Connection thread A: M18x1,5 Pipe Ø R [mm]: 12 X [mm]: 30,5 L1 [mm]: 60,5 H [mm]: 33,0 Outer diameter O-ring [mm]: 11 Height O-ring [mm]: 1,5 SW1 [mm]: 22 Type of nut: union nut Connection name Indunorm: MSOF 90° Connection type: DKM 90° Construction form: 90° Material: Free cutting steel Material O-Ring: NBR 70 Resistance against red rust [h]: 720 Resistance against white rust [h]: 120 Surface: ZnNi Type of fittings: Universal series XV
