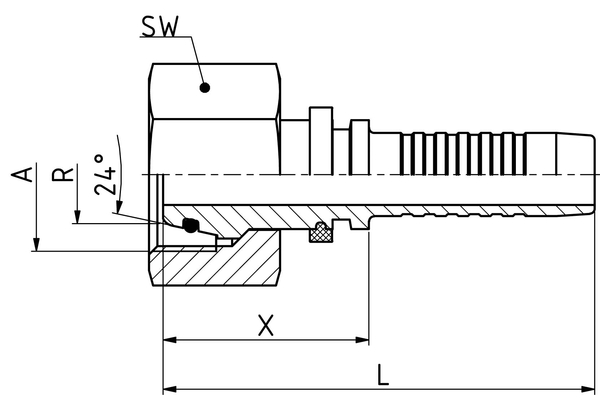

XV26MSOF18-08
DKOL MSOF

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
  Connection thread A:	M26x1,5
  Pipe Ø R [mm]:	18
  X [mm]:	26,8
  L1 [mm]:	59,3
  Outer diameter O-ring [mm]:	16
  Height O-ring [mm]:	2,0
  Height O-Ring [mm]:	2,0
  SW1 [mm]:	32
  Type of nut:	Union nut
  Connection name Indunorm:	MSOF
  Connection type:	DKOL
  Material:	Free cutting steel
  Material O-Ring:	NBR 70
  Resistance against red rust [h]:	350
  Resistance against white rust [h]:	100
  Surface:	Cr3
  Type of fittings:	Universal series XV
