Product info
-
Technical data

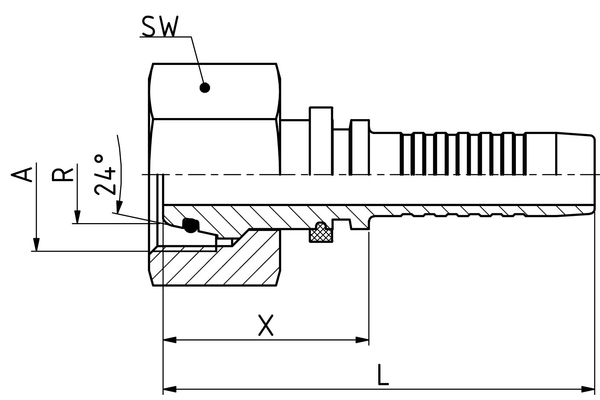

DN: 38 Size: 24 Inch: 1.1/2 Thread + standard: Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series Connection thread A: M52x2,0 Pipe Ø R [mm]: 42 X [mm]: 35,5 L1 [mm]: 103,0 Outer diameter O-ring [mm]: 38 Height O-ring [mm]: 2,5 SW1 [mm]: 60 Type of nut: Union nut Connection name Indunorm: MSOF Connection type: DKOL Material: Free cutting steel Material O-Ring: NBR 70 Resistance against red rust [h]: 720 Resistance against white rust [h]: 120 Surface: ZnNi Type of fittings: Universal series XV
