Product info
-
Technical data

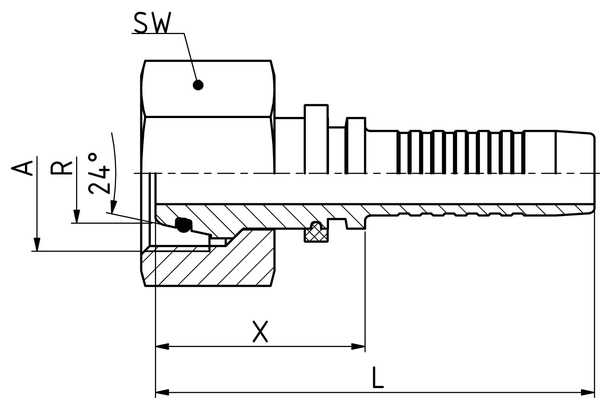

DN: 19 Size: 12 Inch: 3/4 Thread + standard: Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series Connection thread A: M30x2 Pipe Ø R [mm]: 20 X [mm]: 32,0 L1 [mm]: 78,0 Outer diameter O-ring [mm]: 17,5 Height O-ring [mm]: 2,5 SW1 [mm]: 36 Type of nut: ST Connection name Indunorm: MSOF Connection type: DKOS Construction form: 0° Material: Free cutting steel Material O-Ring: NBR 70 Resistance against red rust [h]: 720 Resistance against white rust [h]: 120 Surface: ZnNi Type of fittings: Universal series XV
