CEL/CES - LINDE

Similar image
Similar image

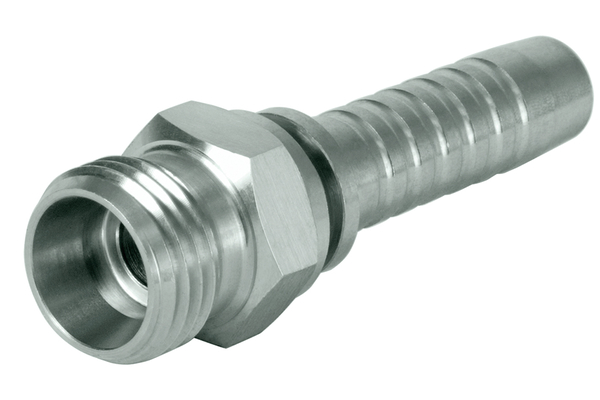

Threaded stem with bore form W (24 °) according to DIN 3861, light series

To accessories

Detail

Art. No.
XV16ME10-05LS
%
SALE
XV16ME10-06LS
%
SALE
XV18ME12-06LS
%
SALE
XV20ME12-06LS
%
SALE
DN
08
10
10
10
Size
05
06
06
06
Inch
5/16
3/8
3/8
3/8
Thread + standard
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, heavy series

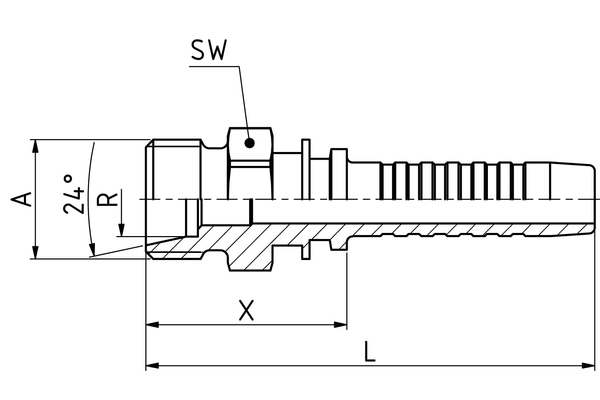

Connection thread A
M16x1,5
M16x1,5
M18x1,5
M20x1,5
Pipe Ø R [mm]
10
10
12
12
X [mm]
28,4
28,4
28,4
28,4
L1 [mm]
61,3
61,3
61,3
63,3
SW1 [mm]
17
17
19
22
Quantity


Product info

  • Specifications
    Connection name Indunorm: ME
    Connection type: CEL
    Construction form: 0°
    Material: Free cutting steel
    Surface: galvanised and Cr III passivated
    Type of fittings: Universal series XV

Practical tip

The pre-assembly of the cutting ring should be carried out using the hardened pre-assembly socket RV..VM L / S. For assembling cutting rings properly, please refer to our installation instructions.
