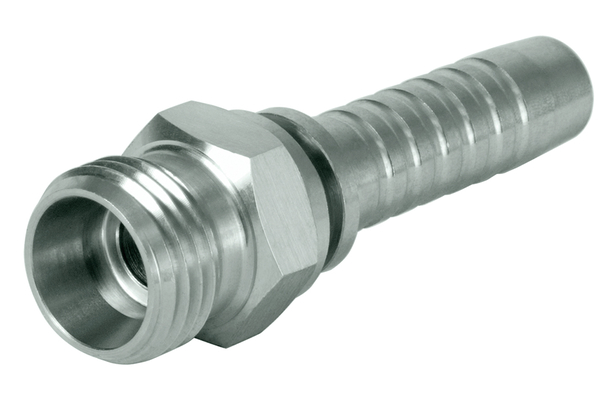

XV16ME10-06LS
CEL ME

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  Thread + standard:	Threaded stem with bore form W (24 °) according to DIN 3861, light series

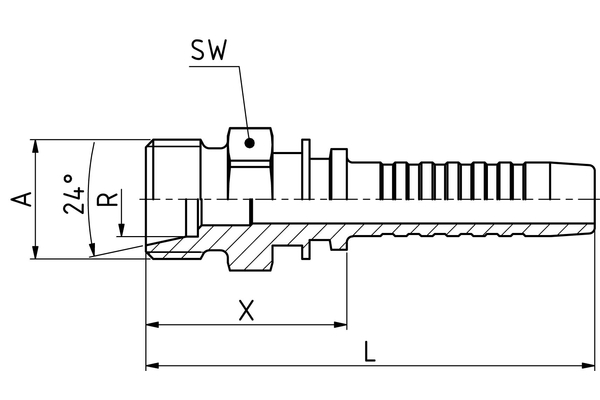

  Connection thread A:	M16x1,5
  Pipe Ø R [mm]:	10
  X [mm]:	28,4
  L1 [mm]:	61,3
  SW1 [mm]:	17
  Connection name Indunorm:	ME
  Connection type:	CEL
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
