Product info
-
Technical data

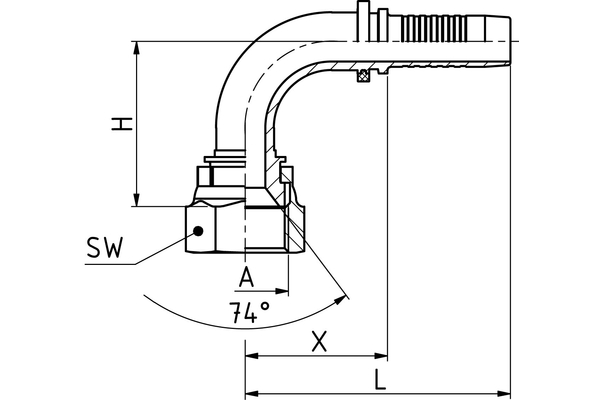

DN: 06 Size: 04 Inch: 1/4 Thread + standard: JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread Connection thread A: 9/16"-18 UNF X [mm]: 23,0 L1 [mm]: 49,5 H [mm]: 29,0 SW1 [mm]: 19 Type of nut: CR Connection name Indunorm: JF 90° Connection type: DKJ 90° Construction form: 90° Material: Free cutting steel Resistance against red rust [h]: 144 Resistance against white rust [h]: 72 Surface: galvanised and Cr III passivated Type of fittings: Universal series XV
