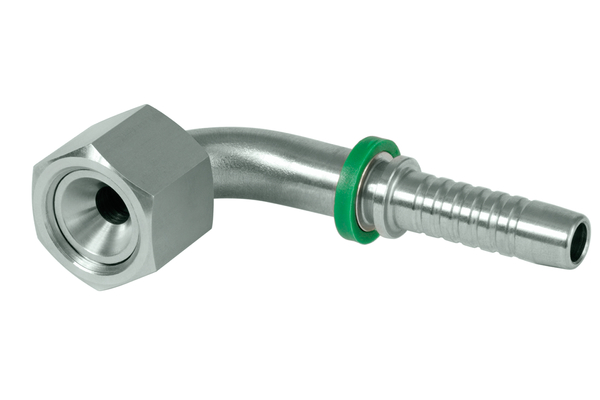

XV14J90S10
DKJ 90° JF 90°

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8
  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
  Connection thread A:	7/8-14" UNF

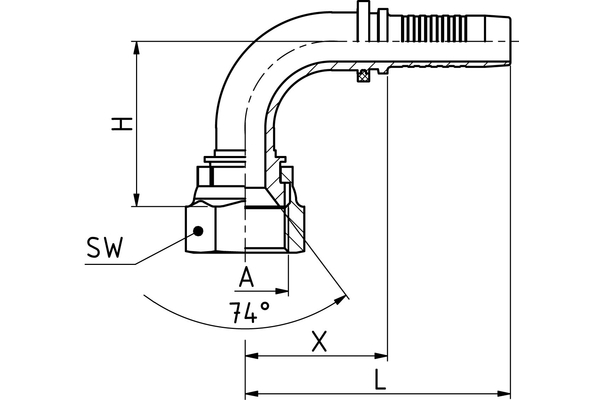

  X [mm]:	46,5
  L1 [mm]:	85,0
  H [mm]:	45,5
  SW1 [mm]:	27
  Type of nut:	CR
  Connection name Indunorm:	JF 90°
  Connection type:	DKJ 90°
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	Zinc-Nickel
  Type of fittings:	Universal series XV
