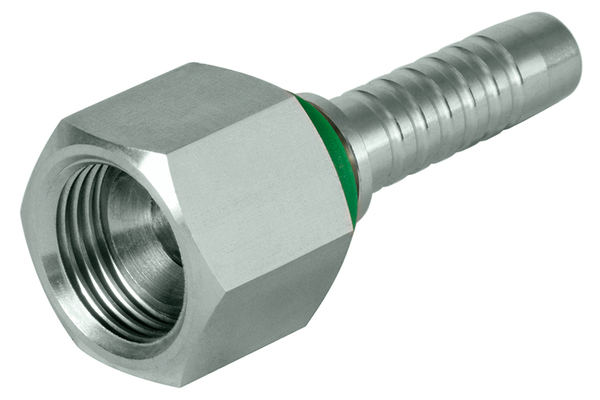

XV30JF20
DKJ JF

Product info

• Technical data

  DN:	31
  Size:	20
  Inch:	1.1/4
  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
  Connection thread A:	1.7/8"-12 UN

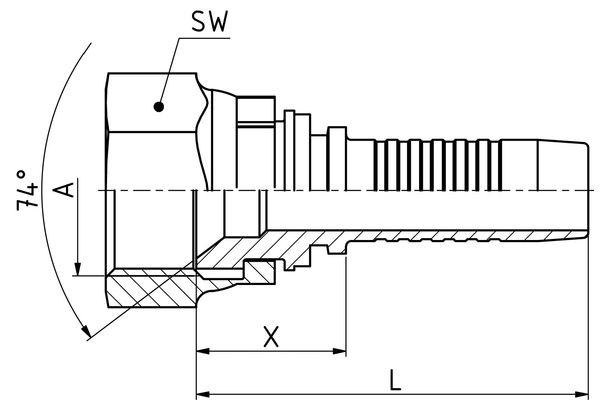

  X [mm]:	28,5
  L1 [mm]:	86,4
  SW1 [mm]:	55
  Type of nut:	CR
  Connection name Indunorm:	JF
  Connection type:	DKJ
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	Cr3
  Type of fittings:	Universal series XV
