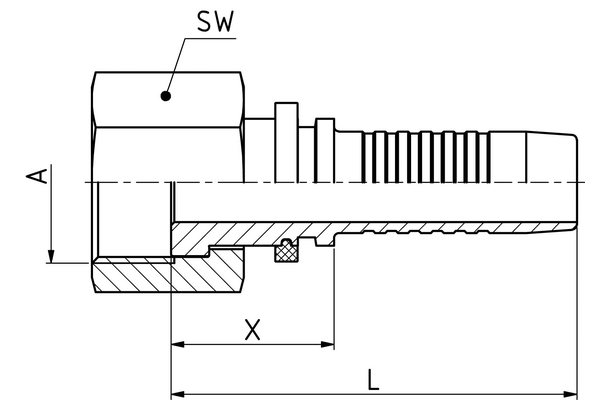

XV24LORF24
ORFS with union nut LORF

Product info

• Technical data

  DN:	38
  Size:	24
  Inch:	1.1/2
  Thread + standard:	ORFS sealing form, with union nut, UN / UNF / UNS-Thread
  Connection thread A:	2"-12 UN
  X [mm]:	41,8
  L1 [mm]:	109,5
  SW1 [mm]:	60
  Connection name Indunorm:	LORF
  Connection type:	ORFS with union nut
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	Cr3
  Type of fittings:	Universal series XV
