Art. No.: VC18MSOF12-90S04
List number: 05065285

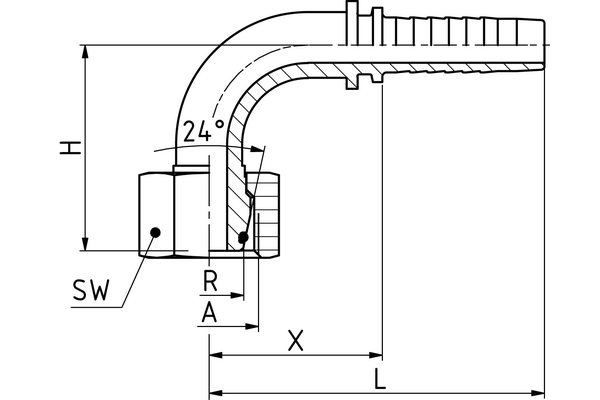

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut, light series
| DN: | 6 |
| Size: | 04 |
| Inch: | 1/4" |
| Thread + standard: | Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series |
| H [mm]: | 33,0 |
| d [mm]: | 4,0 |
| T: | M18x1,5 |
| SW1 [mm]: | 22 |
| E [mm]: | 22 |
| C [mm]: | 29,0 |
| L [mm]: | 57,0 |
| Connection name Indunorm: | MSOF 90° |
| Connection type: | DKM 90° |
| Construction form: | 90° |
| Material: | Free cutting steel |
| Type of fittings: | VC |
Reserve technical changes.
