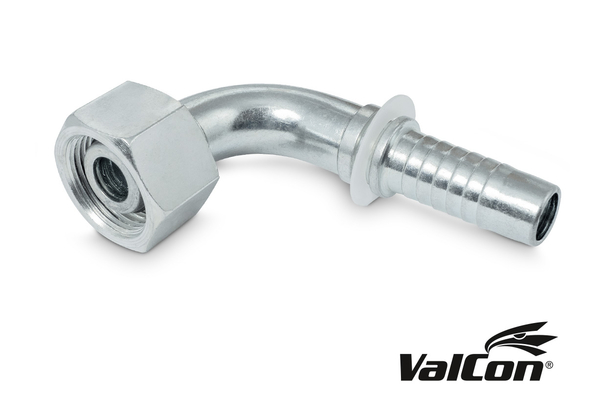

ValCon® DKOL 90°

Similar image
Similar image

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut, light series

To accessories

Detail

Art. No.
VC16MSOF10-90S04
%
SALE
VC16MSOF10-90S06
%
SALE
VC22MSOF15-90S06
%
SALE
VC18MSOF12-90S04
%
SALE
VC18MSOF12-90S05
%
SALE
VC14MSOF08-90S04
%
SALE
VC16MSOF10-90S05
%
SALE
VC18MSOF12-90S06
%
SALE
VC22MSOF15-90S08
%
SALE
VC26MSOF18-90S10
%
SALE
VC30MSOF22-90S12
%
SALE
VC36MSOF28-90S16
%
SALE
DN
6
10
10
6
8
6
8
10
12
16
19
25
Size
04
06
06
04
05
04
05
06
08
10
12
16
Inch
1/4"
3/8"
3/8"
1/4"
5/16"
1/4"
5/16"
3/8"
1/2"
5/8"
3/4"
1"
Thread + standard
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Pipe Ø R [mm]
10
10
15
12
08
10
12
15
18
22
28
H [mm]
27,0
40,5
38,0
33,0
35,0
32,0
33,0
36,5
41,0
46,0
50,0
58,0
d [mm]
4,0
7,0
7,0
4,0
5,5
4,0
5,5
7,0
9,5
12,0
15,0
20,0
Pipe E [mm]
10
10
15
8
10
12
15
18
22
28
T
M16-1,5
M16-1,5
M22-1,5
M18x1,5
M18x1,5
M14-1,5
M16-1,5
M18-1,5
M22-1,5
M26-1,5
M30-2
M36-2
SW1 [mm]
22
E [mm]
19
19
27
22
22
17
19
22
27
32
36
41
C [mm]
28,0
33,5
30,5
29,0
27,0
27,0
31,0
32,0
39,0
46,0
57,0
72,0
L [mm]
53,0
63,5
60,5
57,0
60,5
52,0
57,5
61,5
70,5
80,5
97,0
125,5
Quantity


Standard nominal sizes in bold

Product info

  • Specifications
    Connection name Indunorm: MSOF 90°
    Connection type: DKM 90°
    Construction form: 90°
    Material: Free cutting steel
    Surface: CrIII
    Type of fittings: VC

Practical tip

At higher temperatures, the NBR O-ring can be replaced easily by a Viton O-ring, see XV-SET OR Rohr..L / SV.
