XV..R2

Detail

Art. No.
XV04R2
%
SALE
XV05R2
%
SALE
XV06R2
%
SALE
XV08R2
%
SALE
XV10R2
%
SALE
XV12R2
%
SALE
DN
06
08
10
12
16
19
Size
04
05
06
08
10
12
Inch
1/4
5/16
3/8
1/2
5/8
3/4

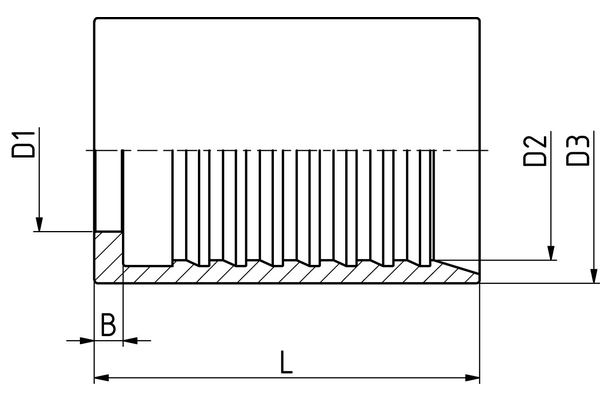

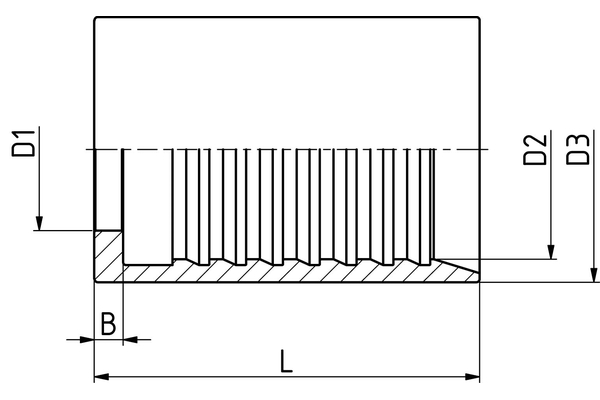

D2 [mm]
20,6
20,4
23,0
26,2
29,4
33,3
Thread + standard
Swage ferrule, non-skive, for: TP1 (DN 16), TP2, TP4FS, TP16FS, TP-R7 (DN 12 - DN 19), TP-R8 (DN 12), TP27 (DN 10)
Swage ferrule, non-skive, for: TP1 (DN 16), TP2, TP4FS, TP16FS, TP-R7 (DN 12 - DN 19), TP-R8 (DN 12), TP27 (DN 10)
Swage ferrule, non-skive, for: TP1 (DN 16), TP2, TP4FS, TP16FS, TP-R7 (DN 12 - DN 19), TP-R8 (DN 12), TP27 (DN 10)
Swage ferrule, non-skive, for: TP1 (DN 16), TP2, TP4FS, TP16FS, TP-R7 (DN 12 - DN 19), TP-R8 (DN 12), TP27 (DN 10)
Swage ferrule, non-skive, for: TP1 (DN 16), TP2, TP4FS, TP16FS, TP-R7 (DN 12 - DN 19), TP-R8 (DN 12), TP27 (DN 10)
Swage ferrule, non-skive, for: TP1 (DN 16), TP2, TP4FS, TP16FS, TP-R7 (DN 12 - DN 19), TP-R8 (DN 12), TP27 (DN 10)
L [mm]
30,0
33,3
33,3
36,5
38,9
44,4
D [mm]
11,0
12,9
14,0
18,5
21,8
24,7
D1 [mm]
15,6
16,5
19,0
22,1
25,7
29,2
Quantity


Product info

  • Specifications

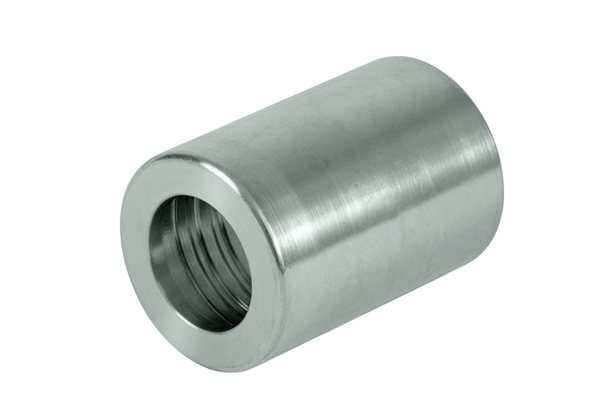

    Connection name Indunorm: XV..R2
    Material: Free cutting steel
    Material: free cutting steel
    Surface: galvanised and Cr III passivated
    Type of fittings: Universal series XV
    application: Ferrule, no-skive
