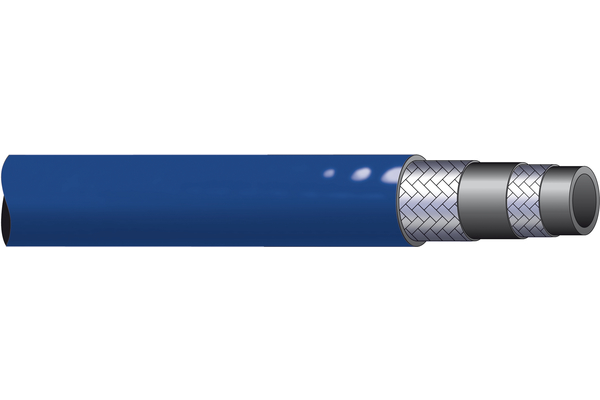

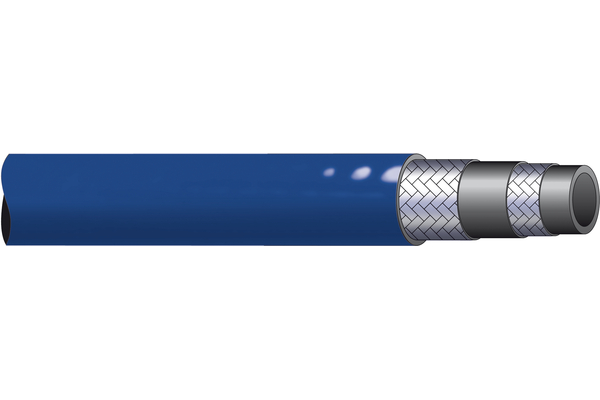

Thermoplastic Paint Spray Hose TP16FS

Paint spraying hose for corrosive media, paint spraying equipment and 2 components PU foam (polyol and isocyanate)

To accessories

Detail

Art. No.

TP16FS06

TP16FS10

TP16FS12

TP16FS16

TP16FS20

Size

Inch

1/4

3/8

1/2

5/8

3/4

Outer Ø [mm]

12,8

16,8

20,2

23,5

27,8

Inner Ø [mm]

6,4

9,8

13,0

16,3

19,5

bending radius [mm]

115

170

working pressure [bar]

425

350

300

250

215

burst pressure [bar]

1700

1400

1200

1000

860

Safety factor

4:1

Standard ferrule

XV04R2

XV06R2

XV08R2

XV10R2

XV12R2

Weight [kg]

0,240

0,365

0,440

0,560

0,675

Static test pressure [bar]

850

700

300

500

430

Quantity

Product info

Specifications

Color cover:	blue
Color inner tube:	black
Cover:	Polyurethan
Inner tube:	Seamless extruded polyamide tube (PA12)
MSHA-Approval:	no
Media:	Airless applications of paint industry, solvents and other chemicals, for air and water-based media
Norm/Standards:	Fulfills or exceeds SAE 100R2 with regard to the operating pressure
Reinforcement:	2 layers of high tensile, brass plated steel wire, antifriction liner to improve the pulse load
Temperature range [°C]:	- 40 ° C to + 100 ° C; isocyanate; + 70 ° C for air and water-based media
application:	Paint spray systems
max operating temperature [°C]:	+100°C
number of layers:	2

Benefit

Due to the high quality inner layer PA12 suitable for many aggressive media. In the DN 16 the hose has a unique advantage combination of high pressure load and small bending radius.
