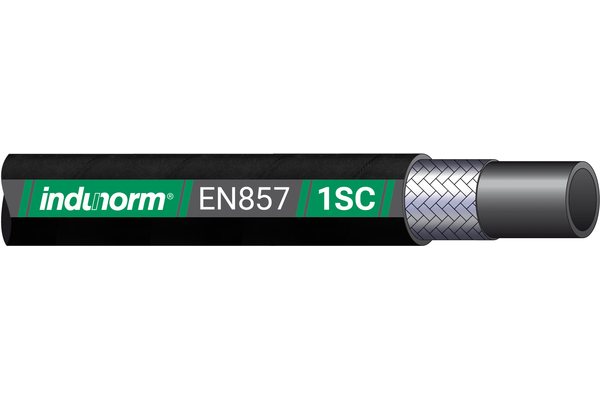

1SC20
Braided hose 1SC

Product info

• Technical data

  DN:	20
  Size:	12
  Inch:	3/4"
  Inner Ø [mm]:	19,4
  bending radius [mm]:	180
  Working pressure [bar]:	105
  burst pressure [bar]:	420
  Standard ferrule:	XV12C
  Outer Ø max. [mm]:	max. 26,7
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber, wear resistant, black
  Inner tube:	Synthetic rubber
  Media:	water and water-based media up to + 70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
  Norm/Standards:	EN 857 - 2SC
  Reinforcement:	high tensile steel wire braid
  Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to + 70 ° C
  application:	medium pressure applications
  number of layers:	1
