APS26-35

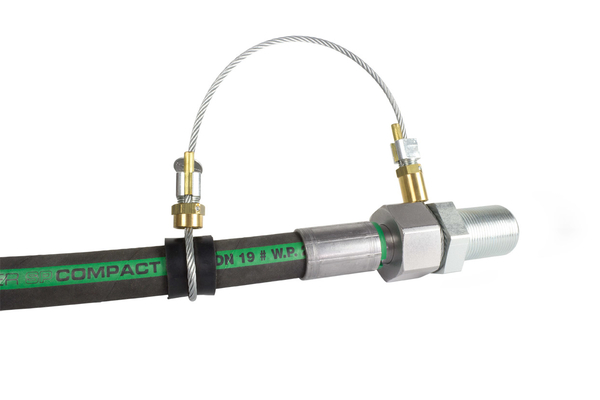

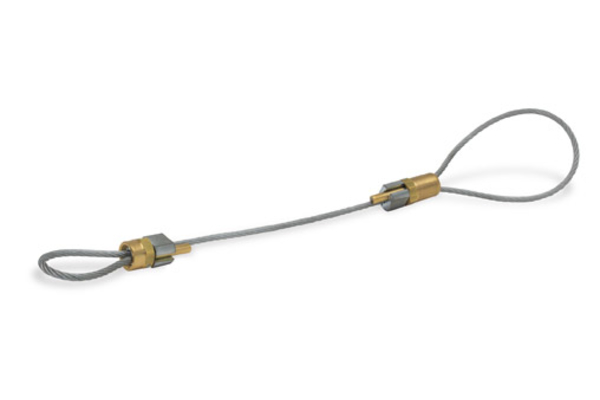

APS Anti-whip device for hydraulic connections

Art. No.: APS26-35

List number: 25710040

Mit der Auspeitschsicherung (APS) sorgen Sie für ein Höchstmaß an Sicherheit, so wie es in der DIN EN ISO 4413 zum Schutz vor peitschenden Schlauchleitungen gefordert wird.

To accessories

Product info

Technical data

for hose-DN:	DN20
suitable for hose-outer-Ø [mm]:	26 to 36
machine fixture OD [mm]:	26 to 36
Working pressure [bar]:	420
Visible cable arc length [mm]:	240 to 300
Ident length [mm]:	640
Code letter:	4D

Benefit

Increased safety of people and facilities. High back-up protection, as required by DIN EN ISO 4413 for protection against whipping hose lines. Subsequent assembly possible, the hose does not have to be dismounted!
