Product info
-
Technical data

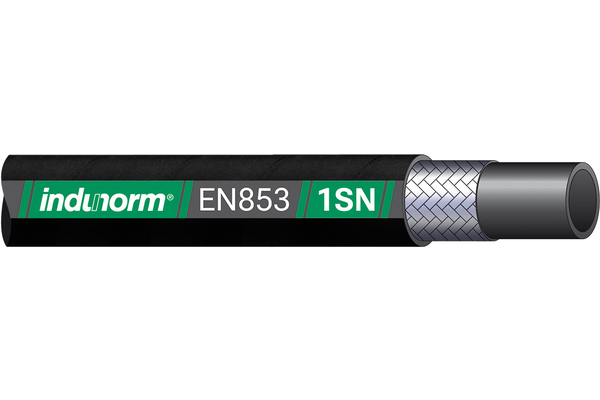

DN: 51 Size: 32 Inch: 2 Outer Ø [mm]: 64,1 Inner Ø [mm]: 51,1 bending radius [mm]: 630 working pressure [bar]: 40 burst pressure [bar]: 160 Safety factor: 4:1 Standard ferrule: XVN32 Standard ferrule stainless steel: XP-P1-32VA Weight [kg]: 2,01 Static test pressure [bar]: 80 Outer Ø max. [mm]: 64,0 Braid diameter [mm]: 59,9 Color cover: black Color inner tube: black Cover: Synthetic rubber, wear resistant Inner tube: Synthetic rubber MSHA-Approval: no Media: Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions Norm/Standards: EN 853 - 1SN Reinforcement: 1 layer of high tensile steel wire Temperature range [°C]: - 40 ° C to + 100 ° C application: high pressure applications max operating temperature [°C]: +100°C number of layers: 1
