Product info
-
Technical data

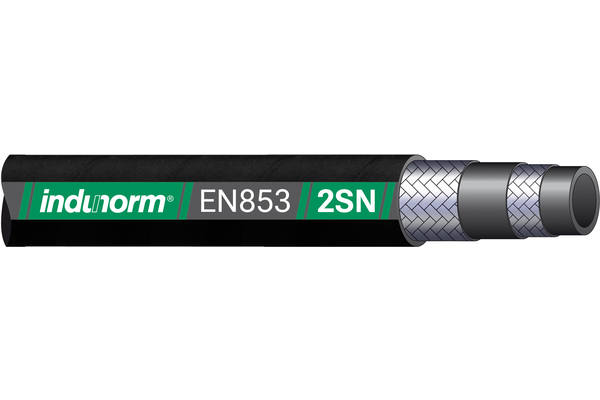

DN: 19 Size: 12 Inch: 3/4 bending radius [mm]: 240 working pressure [bar]: 215 burst pressure [bar]: 850 Safety factor: 4:1 Standard ferrule: XVN12 Standard ferrule stainless steel: XP-P5-12VA Weight [kg]: 0,840 Static test pressure [bar]: 430 Outer Ø max. [mm]: 30,1 Color cover: black Color inner tube: Synthetic rubber Cover: Synthetic rubber, wear resistant Inner tube: Synthetic rubber MSHA-Approval: no Media: Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions Norm/Standards: EN 853 - 2SN Reinforcement: 2 layers of high tensile steel wire braid Temperature range [°C]: - 40 ° C to + 100 ° C application: High pressure applications max operating temperature [°C]: +100°C number of layers: 2
