Product info
-
Technical data

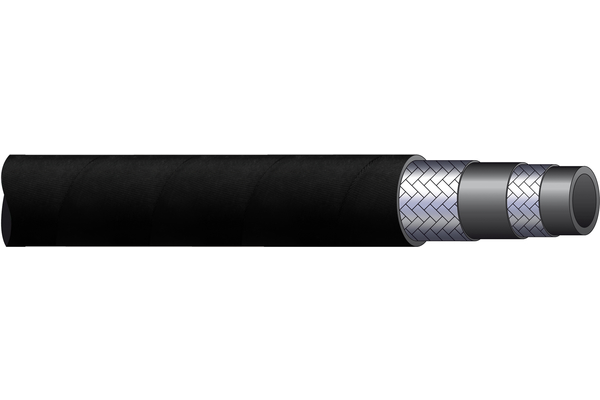

DN: 06 Size: 04 Inch: 1/4 Outer Ø [mm]: 15,0 Inner Ø [mm]: 6,4 bending radius [mm]: 100 working pressure [bar]: 400 burst pressure [bar]: 1600 Safety factor: 4:1 Weight [kg]: 0,390 Static test pressure [bar]: 800 Outer Ø max. [mm]: 15,7 Approvals: Note: There are no joint-fit (@) system tests for this article. Color cover: black Color inner tube: black Cover: Synthetic rubber, wear resistant, black Inner tube: Synthetic rubber, black MSHA-Approval: no Media: Mineral and synthetic oils Norm/Standards: EN 853 - 2SN Note: short-term up to 150 ° C Reinforcement: 2 layers of high tensile steel wire braid Temperature range [°C]: - 40 ° C to + 135 ° C application: oil hydraulic up to 150°C max operating temperature [°C]: short-term up to 150 ° C number of layers: 2
