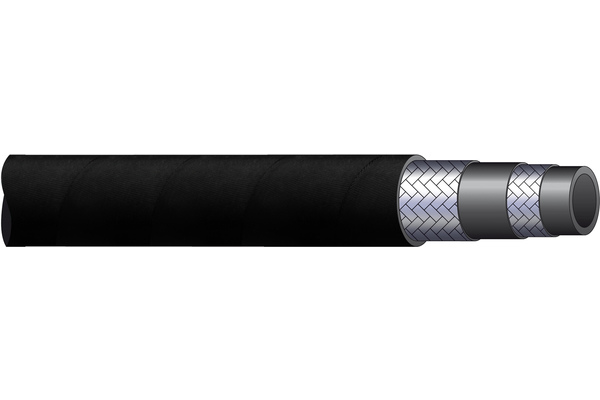

Braided Hose 2SN-HT..SW-S (EN 853 - 2SN)

Hydraulic hose for high pressure applications in hydraulic systems where operating temperatures are up to 150°C, according to EN 853 - 2SN

To accessories

Detail

Art. No.

2SN-HT06SW-S

2SN-HT08SW-S

2SN-HT10SW-S

2SN-HT12SW-S

2SN-HT16SW-S

2SN-HT20SW-S

2SN-HT25SW-S

2SN-HT32SW-S

2SN-HT40SW-S

Size

Inch

1/4

5/16

3/8

1/2

5/8

3/4

1.1/4

1.1/2

Outer Ø [mm]

15,0

16,5

18,9

22,2

25,2

29,2

37,2

47,3

53,7

Inner Ø [mm]

6,4

8,0

9,5

12,7

16,0

19,0

25,4

31,8

38,1

bending radius [mm]

100

115

130

180

200

240

300

420

500

working pressure [bar]

400

350

330

275

250

215

165

125

burst pressure [bar]

1600

1400

1320

1100

1000

850

650

500

360

Safety factor

4:1

Weight [kg]

0,390

0,455

0,565

0,665

0,780

0,965

1,360

2,075

2,390

Static test pressure [bar]

800

700

660

550

500

430

330

250

180

Outer Ø max. [mm]

15,7

17,3

19,7

23,0

26,2

30,1

38,9

49,5

55,9

Quantity

Product info

Specifications

Approvals:	Note: There are no joint-fit (@) system tests for this article.
Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber, wear resistant, black
Inner tube:	Synthetic rubber, black
MSHA-Approval:	no
Media:	Mineral and synthetic oils
Norm/Standards:	EN 853 - 2SN
Reinforcement:	2 layers of high tensile steel wire braid
Temperature range [°C]:	- 40 ° C to + 135 ° C
application:	oil hydraulic up to 150°C
max operating temperature [°C]:	short-term up to 150 ° C
number of layers:	2
