Product info
-
Technical data

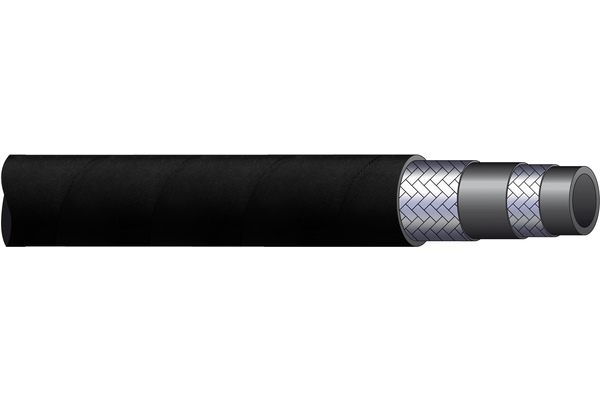

DN: 16 Size: 10 Inch: 5/8 Outer Ø [mm]: 25,2 Inner Ø [mm]: 16,0 bending radius [mm]: 200 working pressure [bar]: 250 burst pressure [bar]: 1000 Safety factor: 4:1 Weight [kg]: 0,780 Static test pressure [bar]: 500 Outer Ø max. [mm]: 26,2 Approvals: Note: There are no joint-fit (@) system tests for this article. Color cover: black Color inner tube: black Cover: Synthetic rubber, wear resistant, black Inner tube: Synthetic rubber, black MSHA-Approval: no Media: Mineral and synthetic oils Norm/Standards: EN 853 - 2SN Note: short-term up to 150 ° C Reinforcement: 2 layers of high tensile steel wire braid Temperature range [°C]: - 40 ° C to + 135 ° C application: oil hydraulic up to 150°C max operating temperature [°C]: short-term up to 150 ° C number of layers: 2
