Product info
-
Specifications

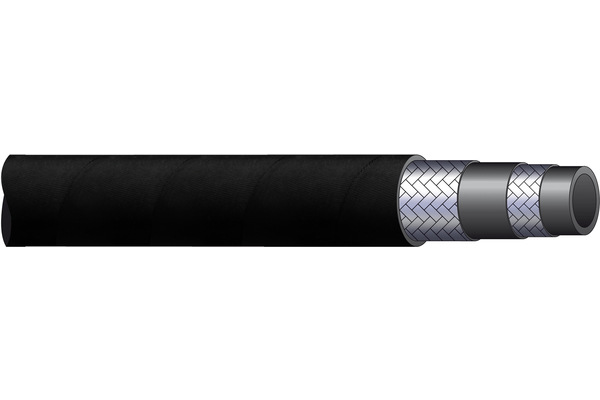

DN: 38 Size: 24 Inch: 1.1/2 Outer Ø [mm]: 53,7 Inner Ø [mm]: 38,1 bending radius [mm]: 500 working pressure [bar]: 90 burst pressure [bar]: 360 Safety factor: 4:1 Weight [kg]: 2,390 Static test pressure [bar]: 180 Outer Ø max. [mm]: 55,9 Approvals: Note: There are no joint-fit (@) system tests for this article. Color cover: black Color inner tube: black Cover: Synthetic rubber, wear resistant, black Inner tube: Synthetic rubber, black MSHA-Approval: no Media: Mineral and synthetic oils Norm/Standards: EN 853 - 2SN Note: short-term up to 150 ° C Reinforcement: 2 layers of high tensile steel wire braid Temperature range [°C]: - 40 ° C to + 135 ° C application: oil hydraulic up to 150°C max operating temperature [°C]: short-term up to 150 ° C number of layers: 2
