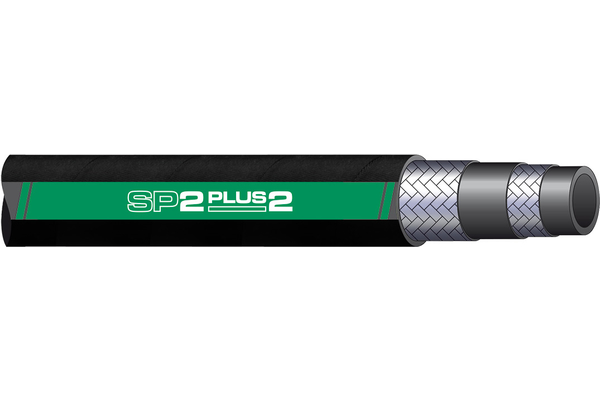

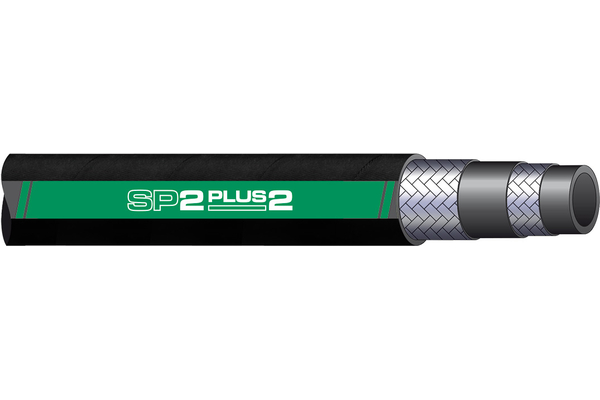

Braided Hose SP2plus2 (exceeds EN 853 - 2SN)

Hydraulic hose of the SUPER-POWER® premium series for high-pressure applications in hydraulics, exceeds EN 853 - 2SN

To accessories

Detail

Art. No.

SP2PLUS2-06

SP2PLUS2-08

SP2PLUS2-10

SP2PLUS2-12

SP2PLUS2-16

Size

Inch

1/4

5/16

3/8

1/2

5/8

Outer Ø [mm]

13,3

15,0

17,0

20,7

23,7

Inner Ø [mm]

6,6

8,3

9,9

13,0

16,4

bending radius [mm]

140

working pressure [bar]

480

440

400

350

290

burst pressure [bar]

1920

1760

1600

1400

1160

Safety factor

4:1

Standard ferrule

XV04C

XV05C

XV06C

XV08C

XV10C

Standard ferrule stainless steel

XP-P1-04VA

XP-P1-05VA

XP-P1-06VA

XP-P1-08VA

XP-P1-10VA

Weight [kg]

0,27

0,31

0,39

0,52

0,63

Static test pressure [bar]

960

880

800

700

580

Outer Ø max. [mm]

14,2

16,0

18,3

21,5

24,7

Braid diameter [mm]

11,5

13,1

14,9

18,7

21,9

Quantity

Product info

Specifications

Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber, wear resistant
Inner tube:	Oil resistant synthetic rubber
MSHA-Approval:	no
Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
Norm/Standards:	EXCEEDS EN 857 - 2SN
Reinforcement:	High tensile steel wire braid
Temperature range [°C]:	- 40 ° C to + 100 ° C short-term + 120 ° C; Water and water-based media up to max. + 70 ° C
application:	High pressure applications
max operating temperature [°C]:	+100°C
number of layers:	2

Benefit

Significantly better than the 2SN hose. Storage cost savings by using the universal program XV. High ozone resistance. Exceeds pressure values according to EN 853/857 by far. Up to 30% tighter bend radius than 2SN hose. Up to 10 times more abrasion resistance!

Accessories

STOPFLEX TEXS

Practical tip

Very suitable for use in: tail lifts, telescopic loading cranes, municipal vehicles. Particularly suitable for applications with high demands on abrasion resistance, difficult environmental conditions (ozone, heat, UV radiation) and small bending radius.
