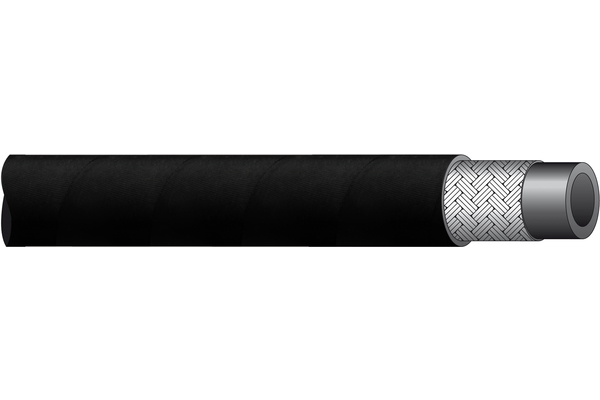

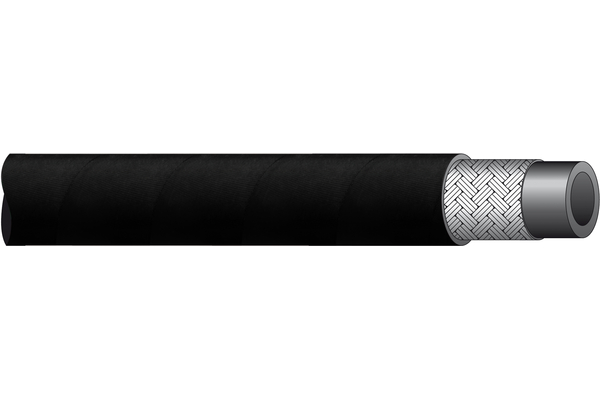

Textile Hose 1TE (EN 854 - 1TE)

Black, abrasion-resistant hydraulic hose with textile insert according to EN 854 - 1TE.

To accessories

Detail

Art. No.

1TE06

1TE08

1TE10

1TE12

1TE16

1TE20

Size

Inch

1/4

5/16

3/8

1/2

5/8

3/4

Outer Ø [mm]

12,4

13,9

15,5

18,7

22,9

26,6

Inner Ø [mm]

6,4

7,9

9,5

12,7

15,9

19,1

bending radius [mm]

115

135

working pressure [bar]

burst pressure [bar]

100

Safety factor

4:1

Standard ferrule

XVTE04

XVTE05

XVTE06

XVTE08

XVTE10

XVTE12

Weight [kg]

0,105

0,120

0,150

0,180

0,260

0,300

Static test pressure [bar]

Inner diameter min [mm]

18,3

outer diameter min [mm]

25,4

Outer Ø max. [mm]

27,8

Inner diameter max [mm]

19,9

Quantity

Product info

Specifications

Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber, wear resistant, black
Inner tube:	Synthetic rubber, black
MSHA-Approval:	no
Media:	water and water-based media up to + 70 ° C; Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
Norm/Standards:	EN 854 - 1 TE
Reinforcement:	Textile braid, single layer
Temperature range [°C]:	- 40 ° C to + 100 ° C
max operating temperature [°C]:	+100°C
number of layers:	1
