Product info
-
Specifications

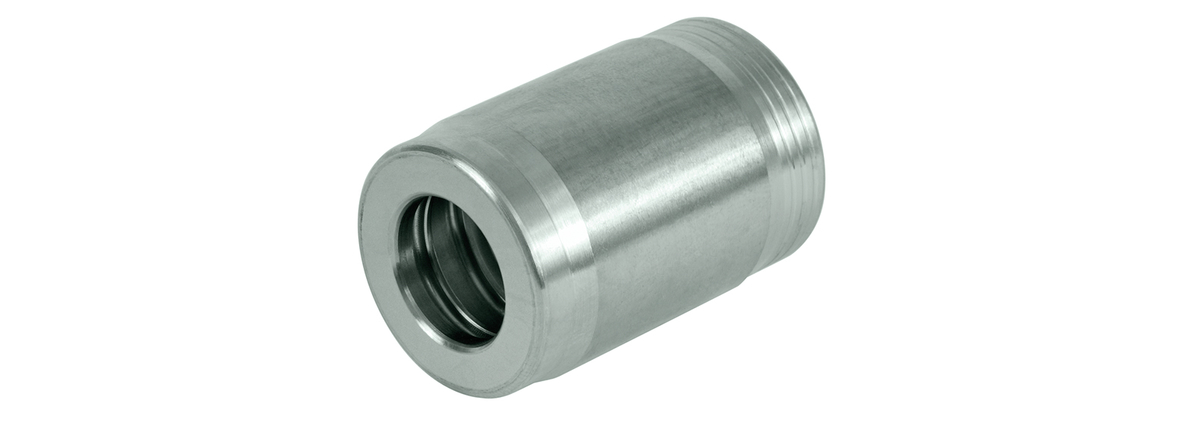

DN: 25 Size: 16 Inch: 1 bending radius [mm]: 340 working pressure [bar]: 280 burst pressure [bar]: 1120 Safety factor: 4:1 Standard ferrule: XV16D/4L Standard ferrule stainless steel: XP-P3-16VA Static test pressure [bar]: 560 Outer Ø max. [mm]: 39,7 Color cover: black Color inner tube: black Cover: Synthetic rubber, wear resistant Inner tube: Synthetic rubber MSHA-Approval: no Media: Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions Norm/Standards: EN 856 - 4SP (in DN31, conform to EN 856 - R12) Reinforcement: high tensile steel spirals Temperature range [°C]: - 40 ° C to + 100 ° C, water and water-based media up to + 70 ° C application: High pressure applications max operating temperature [°C]: +100°C number of layers: 4
