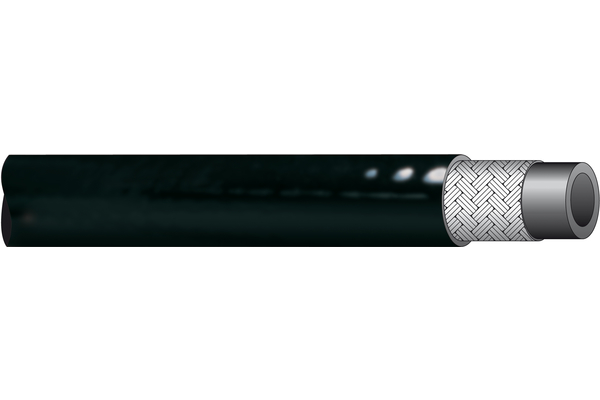

TP-R7 (according to SAE 100 R7)

Thermoplastic hose for high pressure applications, according to SAE 100 R7. Accurate control of your hydraulic system through maximum working pressure of the TP hoses. Our TP hoses are characterized by high resistance to weathering, aging and abrasion.

To accessories

Detail

Art. No.

TP-R7-05

TP-R7-06

TP-R7-08

TP-R7-10

TP-R7-12

TP-R7-16

TP-R7-20

TP-R7-25

Size

Inch

3/16

1/4

5/16

3/8

1/2

5/8

3/4

Outer Ø [mm]

9,6

12,2

14,3

16,0

20,3

23,7

27,1

34,0

Inner Ø [mm]

5,0

6,5

8,1

9,7

13,0

16,3

19,5

25,9

bending radius [mm]

110

140

190

working pressure [bar]

210

190

160

140

105

burst pressure [bar]

840

760

640

560

420

360

280

Safety factor

4:1

Standard ferrule

XV03R1

XV04R1

XV05R1

XV06R1

XV08R2

XV10R2

XV12R2

XV16P3

Standard ferrule stainless steel

XP-R7-04VA

XP-R7-05VA

XP-R7-06VA

XP-R7-08VA

XP-R7-10VA

XP-R7-12VA

XP-R7-16VA

Weight [kg]

0,060

0,100

0,130

0,145

0,220

0,280

0,335

0,455

Static test pressure [bar]

420

380

320

280

210

180

140

Vacuum [bar]

0,93 bar; 700 mm Hg|-13,5 psi; 27,5 inch Hg

Quantity

Product info

Specifications

Color cover:	black
Color inner tube:	black
Cover:	Polyurethan, pin pricked
Inner tube:	Seamless extruded polyester tube (PEL)
MSHA-Approval:	no
Media:	Mineral oils and fluids based on phosphate ester-based hydraulic fluids, gas applications (does not apply to flammable gases, oxygen and LPG)
Norm/Standards:	SAE 100 R7
Reinforcement:	synthetic fiber
Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to max. + 70 ° C
application:	Construction and agricultural equipment - Agricultural brake systems - Forklift Trucks - Articulating and telescopic booms - Aerial platforms - Scissor lifts - Cranes - General hydraulics - Industrial gases
max operating temperature [°C]:	+100°C
number of layers:	DN04+05 = 1 layer, DN06-25 = 2 layers

Benefit

"Pin-pricked cover for gas applications. High flexibility and low fatigue of the material within the entire temperature range. Low elongation (<+ - 3%)... At operating pressure"
