TP1 (according to SAE 100 R1)

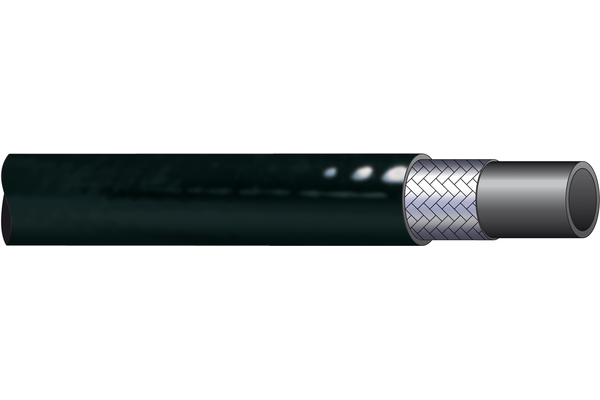

Thermoplastic hose for high pressure applications, according to SAE 100 R1. Accurate control of your hydraulic system through maximum working pressure of the TP hoses. Our TP hoses are characterized by high resistance to weathering, aging and abrasion.

To accessories

Detail

Art. No.

TP1-05

TP1-06

TP1-08

TP1-10

TP1-12

TP1-16

TP1-20

TP1-25

Size

Inch

3/16

1/4

5/16

3/8

1/2

5/8

3/4

Outer Ø [mm]

9,7

11,7

13,2

15,5

18,8

22,0

25,8

33,0

Inner Ø [mm]

5,0

6,5

8,1

9,8

13,0

16,3

19,5

25,8

bending radius [mm]

115

145

180

working pressure [bar]

360

310

250

225

190

140

115

burst pressure [bar]

1440

1240

1000

900

760

560

460

380

Safety factor

4:1

Standard ferrule

XV03R1

XV04R1

XV05R1

XV06R1

XV08R1

XV10R2

XV12R1

XV16C

Weight [kg]

0,120

0,165

0,190

0,230

0,300

0,335

0,440

0,650

Static test pressure [bar]

720

620

500

450

380

280

230

190

Quantity

Product info

Specifications

Color cover:	black
Color inner tube:	black
Cover:	Polyurethan
Inner tube:	Seamless extruded polyester tube (PEL)
MSHA-Approval:	no
Media:	Mineral oils and fluids based on phosphate ester-based hydraulic oils, greases
Norm/Standards:	SAE 100 R1
Reinforcement:	high tensile, brass plated steel wire
Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to max. + 70 ° C
max operating temperature [°C]:	+100°C
number of layers:	1
