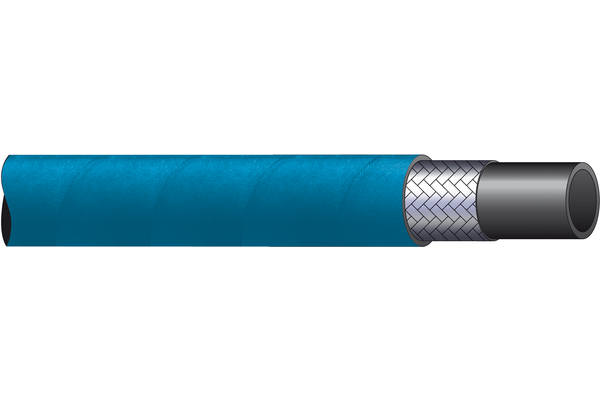

Braided Hose for pressure washer 1HWS-B (EN 853 - 1SN)

High pressure hose for pressure washer applications, for hot and cold water, according to EN 853 - 1SN

To accessories

Detail

Art. No.

1HWS06B

1HWS08B

1HWS10B

1HWS12B

Size

Inch

1/4

5/16

3/8

1/2

Outer Ø [mm]

13,0

14,7

16,8

20,0

Inner Ø [mm]

6,6

8,3

9,9

13,0

bending radius [mm]

100

115

125

180

working pressure [bar]

250

220

burst pressure [bar]

900

860

720

640

Safety factor

3,6:1

3,9:1

3,3:1

2,9:1

Standard ferrule

XV04C

XV05C

XV06C

XV08C

Weight [kg]

0,19

0,22

0,28

0,36

Static test pressure [bar]

450

430

360

330

Braid diameter [mm]

10,9

12,5

14,8

17,9

Quantity

Product info

Specifications

Color cover:	black or blue
Color inner tube:	black
Cover:	Synthetic rubber, wear resistant, black or blue
Inner tube:	Synthetic rubber, black
MSHA-Approval:	no
Media:	Water, commercially available detergent
Norm/Standards:	EN 853 - 1SN
Reinforcement:	1 layer of high tensile steel wire
Temperature range [°C]:	-40°C to +155°C
application:	pressure washer applications, for hot and cold water, e.g. Kärcher
max operating temperature [°C]:	+155°C
number of layers:	1
