Product info
-
Technical data

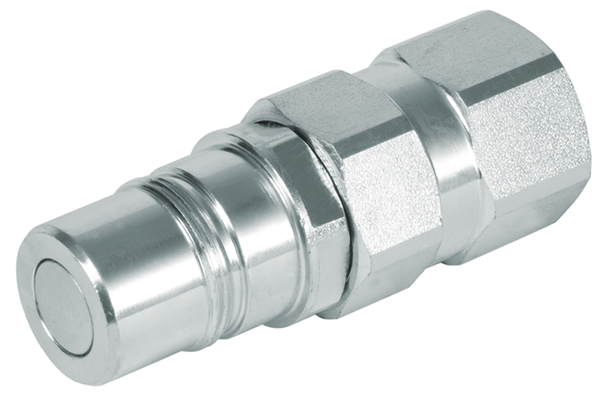

DN: 10 Size: 06 Thread + standard: ORFS male thread ISO 8434-3 Thread [GA]: 13/16"-16 UN Outer Ø plug [mm]: 30 Length plug [mm]: 79,1 Series: 2P Manufacturer ID number: KIT2FNP3811/12S SW1 [mm]: 27 l/min at ΔP=2 bar: 40 Applications: industry, agricultural technology , power units, construction machines Female or male coupling: sleeve Material: Aluminum & Steel Material sealing: NBR & PUR Note: Multi coupling, Flat Face, few leakage oil, allows the connection of several hydraulic lines simultaneously. Connection allowed up to 60bar residual pressure (2P) and full working pressure in the 3P version. Resistance against red rust [h]: 500 Surface: MATE 500 (CrIII) Temperature range [°C]: -25°C /+100°C
