Product info
-
Specifications

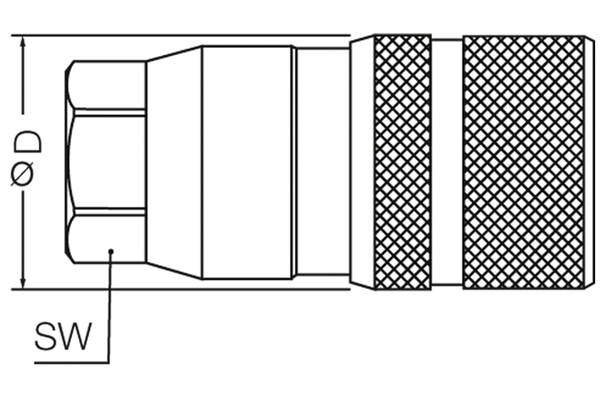

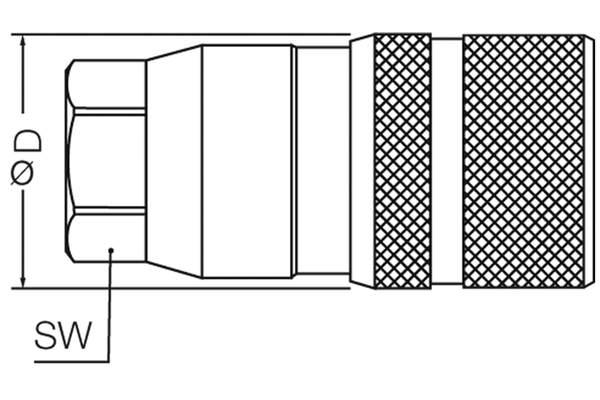

Size: 3 DN: 12 Size: 08 Inch: 1/2 working pressure [bar]: 350 Thread + standard: BSP female DIN 3852 Thread [GA]: 1/2 Outer Ø plug [mm]: 38,0 Length sleeve [mm]: 82,4 Wrench size connection side plug: 34 l/min at ΔP=2 bar: 100 Applications: industry, agricultural technology , power units, construction machines Female or male coupling: sleeve Material: C-steel, nitrified Material Casing: Steel Material sealing: Standard NBR, 85 Shore. Backup ring PTFE Material support ring: PTFE Standard: ISO 16028 Surface: galvanised and Cr III passivated Temperature range [°C]: -25°C to +100°C
