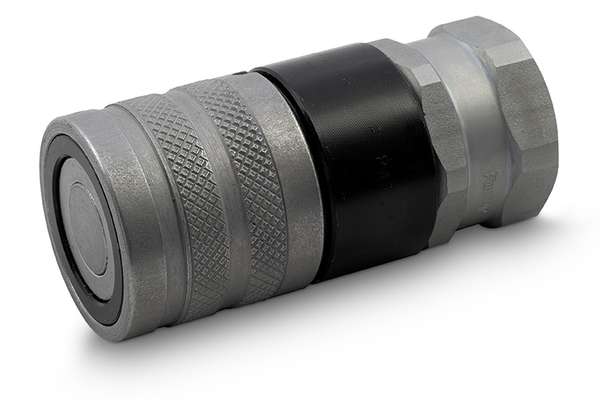

2FSI femal coupling (ISO 16028)

For applications with heavy vibrations, compatibility according to ISO 16028

To accessories

Detail

Art. No.

ST-2FSI08BSP12M

ST-2FSI12BSP20M

ST-2FSI16BSP25M

Size

Inch

1/2

3/4

working pressure [bar]

350

Thread + standard

BSP female DIN 3852

Thread [GA]

1/2

3/4

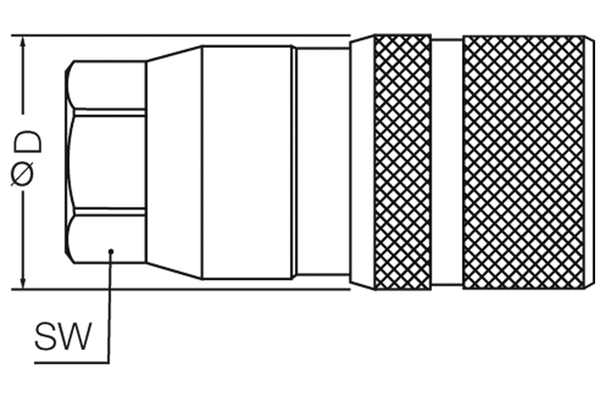

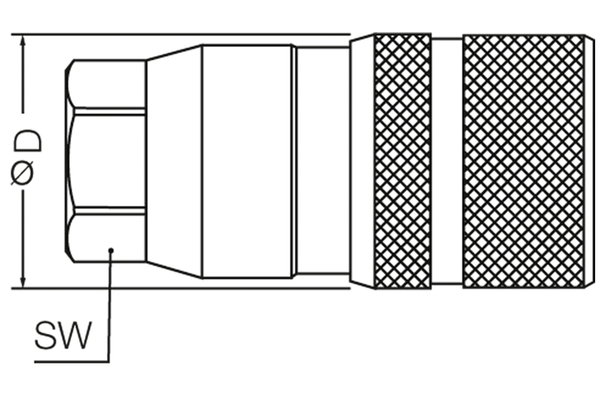

Outer Ø plug [mm]

38,0

48,0

55,0

Length sleeve [mm]

82,4

100,3

99,8

Wrench size connection side plug

l/min at ΔP=2 bar

100

160

210

Quantity

Product info

Specifications

Applications:	industry, agricultural technology , power units, construction machines
Female or male coupling:	sleeve
Material:	C-steel, nitrified
Material Casing:	Steel
Material sealing:	Standard NBR, 85 Shore. Backup ring PTFE
Material support ring:	PTFE
Standard:	ISO 16028
Surface:	galvanised and Cr III passivated
Temperature range [°C]:	-25°C to +100°C

Benefit

In case of strong vibrations, we recommend the ST-2FSI coupling sleeve, because its segmental locking system provides a considerably larger surface contact and thus a greater holding force when connecting plug and sleeve. The "Brinell effect" is prevented and the service life of the components is increased.
