Product info
-
Specifications

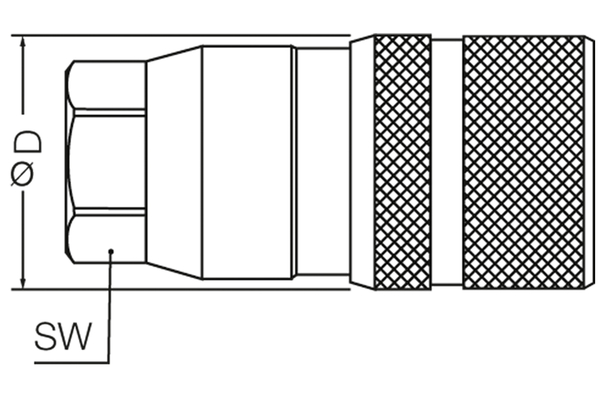

Size: 8 DN: 25 Size: 16 Inch: 1 working pressure [bar]: 350 Thread + standard: BSP female DIN 3852 Thread [GA]: 1 Outer Ø plug [mm]: 55,0 Length sleeve [mm]: 99,8 Wrench size connection side plug: 50 l/min at ΔP=2 bar: 210 Applications: industry, agricultural technology , power units, construction machines Female or male coupling: sleeve Material: C-steel, nitrified Material Casing: Steel Material sealing: Standard NBR, 85 Shore. Backup ring PTFE Material support ring: PTFE Note: Recommended for applications with strong vibrations or impulses. Standard: ISO 16028 Surface: galvanised and Cr III passivated Temperature range [°C]: -25°C to +100°C
