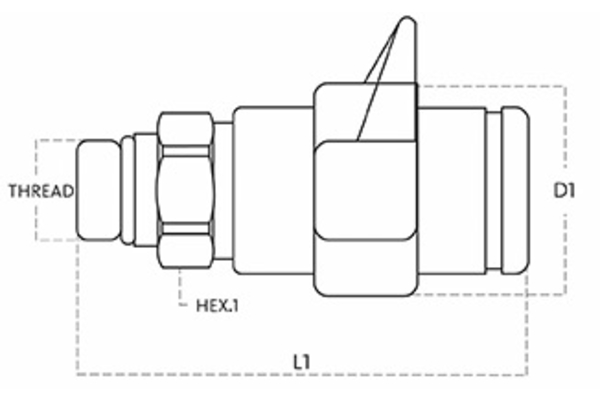

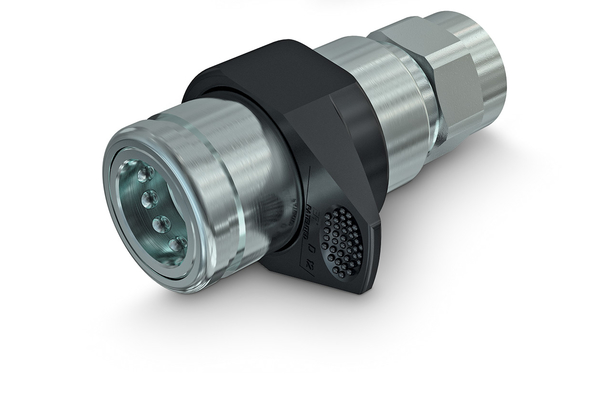

3NV female coupling

Detail

Art. No.
Size
3
3
DN
12
Size
08
08
Inch
1/2
1/2
working pressure [bar]
250
250
Thread + standard
SAE (UNF) female-thread ORB ISO 11926-1
SAE (UNF) male-thread ISO 11926-3
Thread [GA]
3/4
7/8
Outer Ø sleeve [mm]
48,0
48,0
Length sleeve [mm]
100,0
102,6
SW [mm]
27
32
SW1 [mm]
27
32
l/min at ΔP=2 bar
75
75
Quantity
