Product info
-
Specifications

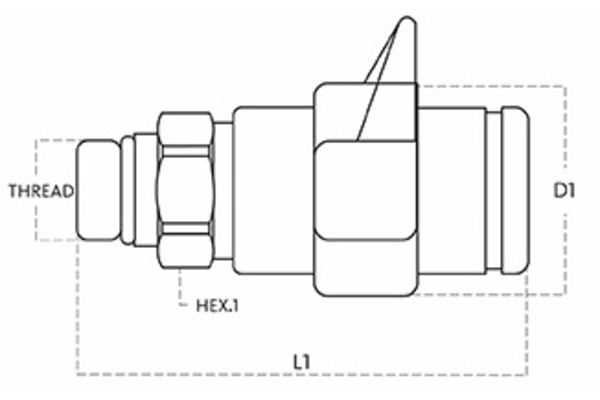

Size: 3 DN: 12 Size: 08 Inch: 1/2 working pressure [bar]: 250 Thread + standard: SAE (UNF) male-thread ISO 11926-3 Thread [GA]: 7/8 Outer Ø sleeve [mm]: 48,0 Length sleeve [mm]: 102,6 SW1 [mm]: 32 l/min at ΔP=2 bar: 75 Applications: Agriculture Female or male coupling: Sleeve Material Casing: Steel Material sealing: NBR Resistance against red rust [h]: 500 Standard: ISO 7241-1A Surface: Mate 500 (CrIII) Temperature range [°C]: - 25 °C to + 125 °C
