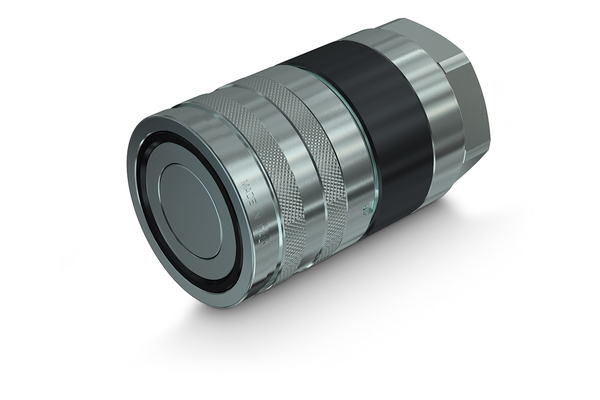

Flat-Face 2FSI-FFI female coupling

Sectors latching couplers. Size 1,1/2" - 2" -3"

To accessories

Detail

Art. No.

2FSI112 GAS F

2FSI 2 GAS F

2FSI 3 GAS F

Size

Inch

1.1/2

working pressure [bar]

250

120

Thread + standard

BSP female-thread ISO 1179-1

BSP Innengewinde ISO 1179-1

Thread [GA]

1.1/2

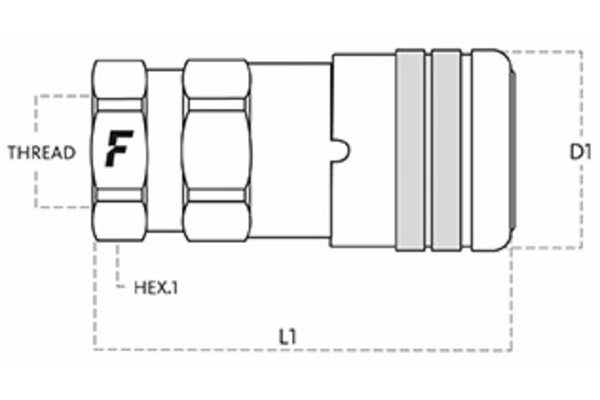

Outer Ø sleeve [mm]

100

159

Length sleeve [mm]

133,4

158,1

211,5

SW1 [mm]

115

l/min at ΔP=2 bar

500

1000

1150

Quantity

Product info

Specifications

Applications:	Construction Equipment, Oil & Gas Applications
Female or male coupling:	Sleeve
Material Casing:	Steel
Material sealing:	NBR & PUR
Resistance against red rust [h]:	500
Surface:	Mate 500 (CrIII)
Temperature range [°C]:	-25 °C to 100 °C

Benefit

Flat face couplings equipped with sector latching system. High resistance to the Brinelling effect, provoked by high frequency impulse pressures. Available on 1", 1-1/2", 2" and 3" sizes. MARKET interchange.
