Product info
-
Specifications

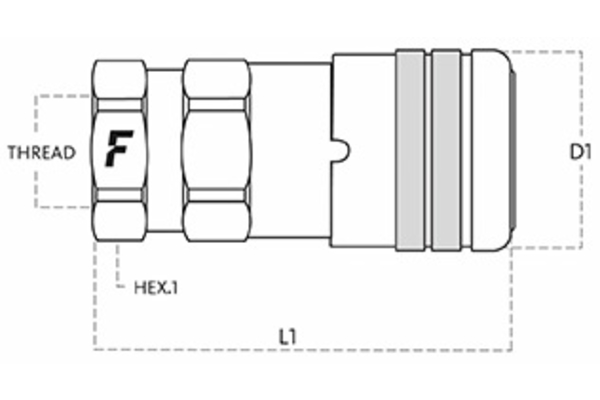

DN: 75 Size: 48 Inch: 3 working pressure [bar]: 120 Thread + standard: BSP Innengewinde ISO 1179-1 Thread [GA]: 3 Outer Ø sleeve [mm]: 159 Length sleeve [mm]: 211,5 SW1 [mm]: 115 l/min at ΔP=2 bar: 1150 Applications: Construction Equipment, Oil & Gas Applications Female or male coupling: Sleeve Material Casing: Steel Material sealing: NBR & PUR Resistance against red rust [h]: 500 Surface: Mate 500 (CrIII) Temperature range [°C]: -25 °C to 100 °C
