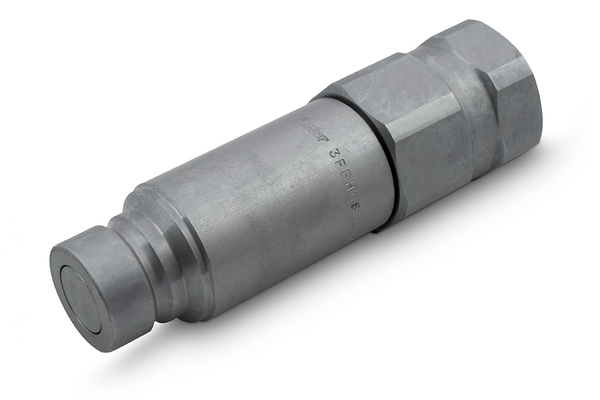

Flat-Face ST-3FF male coupling (ISO 16028)

For general applications (eg. agricultural technology and construction industry), can be coupled under pressure, compatibility according to ISO 16028

To accessories

Detail

Art. No.

ST-3FF06BSP10S

ST-3FF06-08BSP10S

ST-3FF08BSP12S

ST-3FF12BSP20S

ST-3FF16BSP25S

Size

Inch

3/8

1/2

3/4

working pressure [bar]

350

Thread + standard

BSP female-thread ISO 1179-1

Thread [GA]

3/8

1/2

3/4

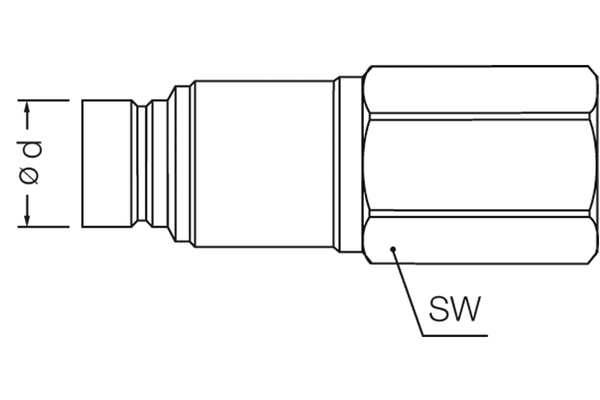

Outer Ø plug [mm]

19,7

24,5

30,0

36,0

Length plug [mm]

99,7

100,7

117,2

132,6

146,5

Wrench size connection side plug

l/min at ΔP=2 bar

150

170

Quantity

Product info

Specifications

Applications:	industry, agricultural technology , power units, construction machines
Female or male coupling:	plug
Material:	C-steel, nitrified
Material Casing:	Steel
Material sealing:	Standard NBR, 85 Shore. Backup ring PTFE
Material support ring:	PTFE
Standard:	ISO 16028
Surface:	galvanised and Cr III passivated
Temperature range [°C]:	-25 °C to +100 °C

Benefit

ST-FF has been tested with 1.000.000 impulses and exceeds the market standard in wear resistance and working pressure.

Accessories

dust protection

Practical tip

ST-3FF is interchangeable within the ISO16028. Please note that with the ST-3FF it is possible to connect against residual pressure (working pressure, one-way, male or female).
