Product info
-
Specifications

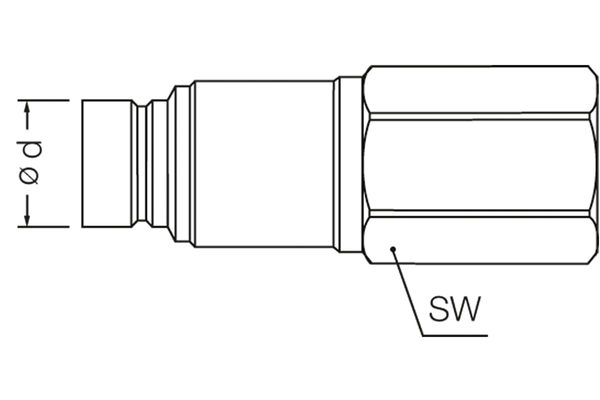

Size: 8 DN: 25 Size: 16 Inch: 1 working pressure [bar]: 350 Thread + standard: BSP female-thread ISO 1179-1 Thread [GA]: 1 Outer Ø plug [mm]: 36,0 Length plug [mm]: 146,5 Wrench size connection side plug: 50 l/min at ΔP=2 bar: 170 Applications: industry, agricultural technology , power units, construction machines Female or male coupling: plug Material: C-steel, nitrified Material Casing: Steel Material sealing: Standard NBR, 85 Shore. Backup ring PTFE Material support ring: PTFE Standard: ISO 16028 Surface: galvanised and Cr III passivated Temperature range [°C]: -25 °C to +100 °C
