Product info
-
Specifications

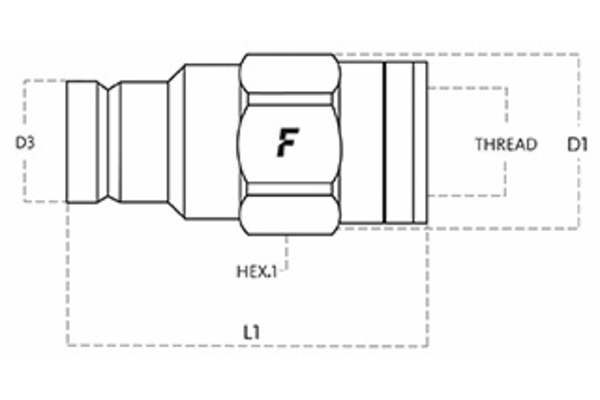

DN: 06 Size: 04 Inch: 1/4 working pressure [bar]: 720 Thread + standard: NPT female-thread ANSI B1.20.3 Thread [GA]: 1/4 Outer Ø plug [mm]: 26,0 Length plug [mm]: 49,0 SW1 [mm]: 24 l/min at ΔP=2 bar: 25 Applications: Industrial, high pressure applications Female or male coupling: Plug Material Casing: Steel Material sealing: NBR, PUR Resistance against red rust [h]: 1000 Resistance against white rust [h]: 500 Surface: Mate 1000 (Zink-Nicker) Temperature range [°C]: - 25 °C to + 100 °C
