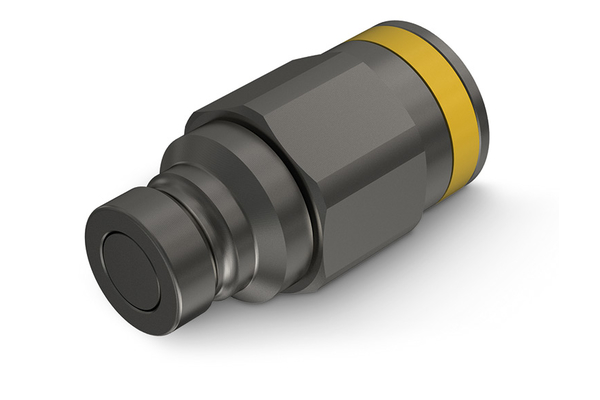

FFHP male coupling

flat face couplings, high pressure

To accessories

Detail

Art. No.

FFHP04 14NPT M

FFHP06 38NPT M

Size

Inch

1/4

3/8

working pressure [bar]

720

Thread + standard

NPT female-thread ANSI B1.20.3

Thread [GA]

1/4

3/8

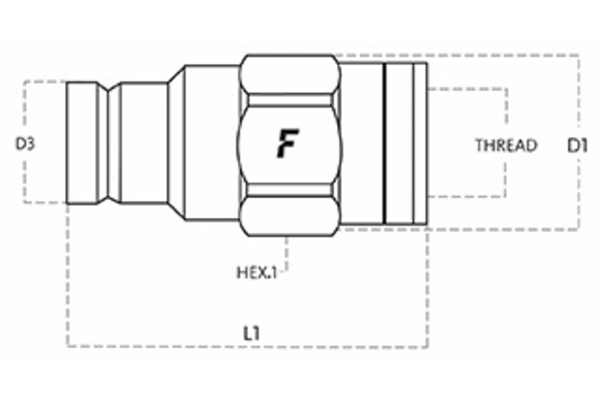

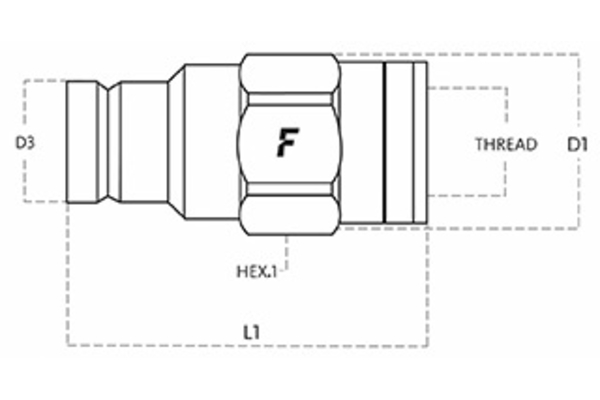

Outer Ø plug [mm]

26,0

33,0

Length plug [mm]

49,0

68,3

SW1 [mm]

l/min at ΔP=2 bar

Quantity

Product info

Specifications

Applications:	Industrial, high pressure applications
Female or male coupling:	Plug
Material Casing:	Steel
Material sealing:	NBR, PUR
Resistance against red rust [h]:	1000
Resistance against white rust [h]:	500
Surface:	Mate 1000 (Zink-Nicker)
Temperature range [°C]:	- 25 °C to + 100 °C

Benefit

Flat-Face coupling with real maximum working pressure up to 72 Mpa, suitable for very high pressure application. Very good resistance to wear and corrosion. Market interchange.
