Product info
-
Specifications

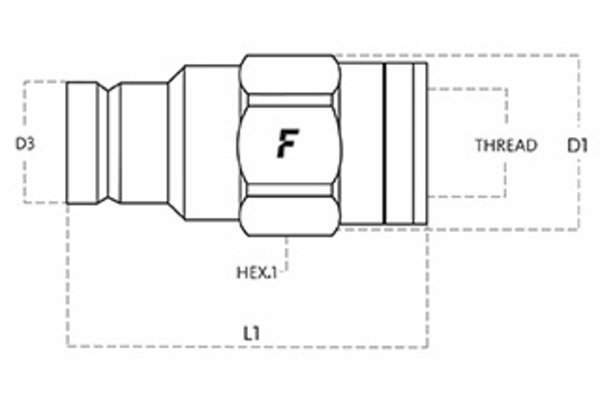

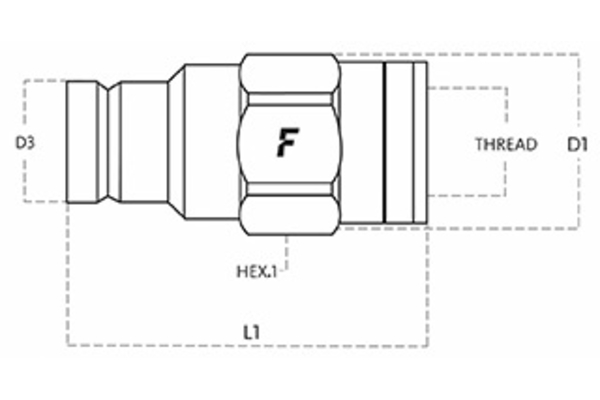

DN: 10 Size: 06 Inch: 3/8 working pressure [bar]: 720 Thread + standard: NPT female-thread ANSI B1.20.3 Thread [GA]: 3/8 Outer Ø plug [mm]: 33,0 Length plug [mm]: 68,3 SW1 [mm]: 30 l/min at ΔP=2 bar: 46 Applications: Industrial, high pressure applications Female or male coupling: Plug Material Casing: Steel Material sealing: NBR, PUR Resistance against red rust [h]: 1000 Resistance against white rust [h]: 500 Surface: Mate 1000 (Zink-Nickel) Temperature range [°C]: - 25 °C to + 100 °C
