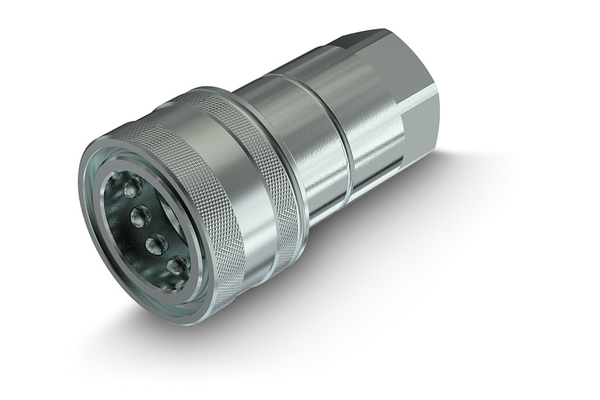

NV female coupling

Similar image
Similar image

Standard couplings with poppet valve. Faster interchangeability (except size 12,5)

To accessories

Detail

Art. No.
NV 14 GAS F
%
SALE
NV 14 NPT F
%
SALE
NV 14-38SAE F
%
SALE
NV 38 GAS F
%
SALE
NV 38 GAS F V
%
SALE
NV 38 NPT F
%
SALE
NV 38-38SAE F
%
SALE
NV 12 GAS F
%
SALE
NV 12 NPT F
%
SALE
NV 12 GAS F V
%
SALE
NV 12-58SAE F
%
SALE
NV 2215 F
%
SALE
NV0/2215 F
%
SALE
NV 34 GAS F
%
SALE
NV 34 NPT F
%
SALE
NV 34 GAS F V
%
SALE
NV 1 GAS F
%
SALE
NV 1 NPT F
%
SALE
NV114 GAS F
%
SALE
NV114 NPT F
%
SALE
NV112 GAS F
%
SALE
NV112 NPT F
%
SALE
NV 2 GAS F
%
SALE
Size
1
1
1
2
2
2
3
3
3
3
3
3
4
4
4
6
6
8
8
DN
06
06
06
10
10
10
10
12
12
12
12
12
12
20
12
20
25
25
32
32
38
38
50
Size
04
04
04
06
06
06
06
08
08
08
08
08
08
12
12
12
16
16
20
20
24
24
32
Inch
1/4
1/4
1/4
3/8
3/8
3/8
3/8
1/2
1/2
1/2
1/2
1/2
1/2
3/4
3/4
3/4
1
1
1.1/4
1.1/4
1.1/2
1.1/2
2
working pressure [bar]
350
350
350
300
300
300
300
300
300
300
300
300
300
300
300
300
250
250
220
220
200
200
150
Thread + standard
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
SAE (UNF) female-thread ISO 11926-1
BSP female-thread ISO 1179-1
BSP Innengewinde ISO 1179-1
NPT female-thread ANSI B1.20.3
SAE (UNF) female-thread ISO 11926-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
SAE (UNF) female-thread ISO 11926-1
Metric female-thread ISO 9974-1
metric female-thread ORB ISO 6149-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
Thread [GA]
1/4
1/4
9/16
3/8
3/8
3/8
9/16
1/2
1/2
1/2
7/8
M22x1,5
M22x1,5
3/4
3/4
3/4
1
1
1.1/4
1.1/4
1.1/2
1.1/2
2

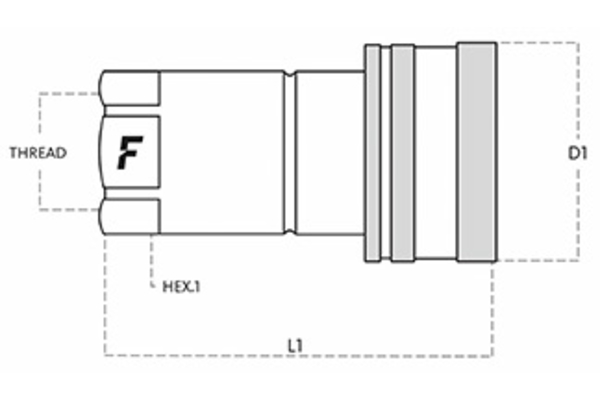

Outer Ø sleeve [mm]
27,00
27,0
27,0
33,0
33,0
33,0
33,0
38,0
38,0
38,0
38,0
38,0
38,0
48,0
48,0
48,0
56,0
56,0
70,0
70,0
84,0
84,0
119,0
Length sleeve [mm]
50,0
50,0
52,5
59,6
59,5
59,5
59,5
66,0
66,0
66,0
69,5
66,0
66,0
84,0
83,0
84,0
99,5
99,5
115,0
115,0
127,5
127,5
151,0
SW1 [mm]
19
19
19
24
24
24
24
27
27
27
32
27
27
34
34
34
41
41
50
50
60
60
75
l/min at ΔP=2 bar
15
15
15
50
50
50
50
75
75
75
75
75
75
150
150
220
220
340
340
450
450
1000
Quantity


Product info

  • Specifications
    Applications: Agriculture, Construction Equipment, Industrial
    Female or male coupling: Sleeve
    Material Casing: Steel
    Material sealing: NBR
    Resistance against red rust [h]: 500
    Surface: MATE 500 (CrIII)
    Temperature range [°C]: -25 °C to 125 °C

Benefit

Standard couplings for general purpose applications with poppet valve shut-off system. Faster proprietary profile ( 1/2" size only is interchangeable according to ISO 7241 part A).
