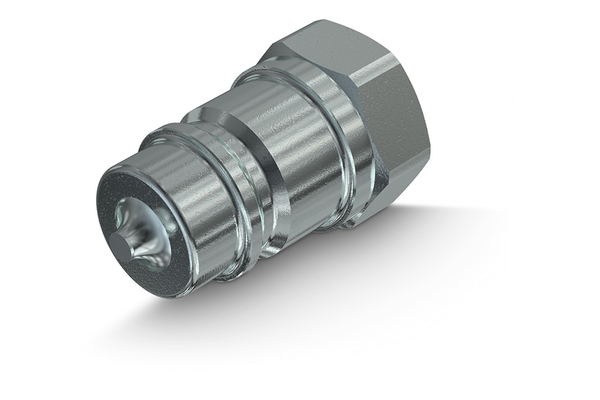

NV male coupling

Similar image
Similar image

Standard couplings with poppet valve. Faster interchangeability (except size 12,5)

To accessories

Detail

Art. No.
NV 14 GAS M
%
SALE
NV 14 NPT M
%
SALE
NV 14-38SAE M
%
SALE
NV 38 GAS M
%
SALE
NV 38 GAS M V
%
SALE
NV 38 NPT M
%
SALE
NV 38-38SAE M
%
SALE
NV 12 GAS M
%
SALE
NV 12 NPT M
%
SALE
NV 12 GAS M V
%
SALE
NV 12-12SAE M
%
SALE
NV 12-58SAE M
%
SALE
NV 2215 M
%
SALE
NV0/12 GAS M
%
SALE
NV 34 GAS M
%
SALE
NV 34 GAS M V
%
SALE
NV 34 NPT M
%
SALE
NV 1 GAS M
%
SALE
NV 1 NPT M
%
SALE
NV114 GAS M
%
SALE
NV114 NPT M
%
SALE
NV112 GAS M
%
SALE
NV112 NPT M
%
SALE
NV 2 GAS M
%
SALE
Size
2
1
1
2
2
2
2
3
3
3
3
3
3
3
4
4
6
6
8
8
DN
06
06
06
10
10
10
10
12
12
12
12
12
12
12
20
20
20
25
25
32
32
38
38
50
Size
04
04
04
06
06
06
06
08
08
08
08
08
08
08
12
12
12
16
16
20
20
24
24
32
Inch
1/4
1/4
1/4
3/8
3/8
3/8
3/8
1/2
1/2
1/2
1/2
1/2
1/2
1/2
3/4
3/4
3/4
1
1
1.1/4
1.1/4
1.1/2
1.1/2
2
working pressure [bar]
350
350
350
300
300
300
300
300
300
300
300
300
300
300
300
300
300
250
250
220
220
200
200
150
Thread + standard
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
SAE (UNF) female-thread ISO 11926-1
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
SAE (UNF) female-thread ISO 11926-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
SAE (UNF) female-thread ISO 11926-1
SAE (UNF) female-thread ISO 11926-1
Metric female-thread ISO 9974-1
BSP female-thread ORB BS 5380
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP Innengewinde ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
NPT Innengewinde ANSI B1.20.3
BSP female-thread ISO 1179-1
Thread [GA]
1/4
1/4
9/16
3/8
3/8
3/8
9/16
1/2
1/2
1/2
3/4
7/8
M22x1,5
1/2
3/4
3/4
3/4
1
1
1.1/4
1.1/4
1.1/2
1.1/2
2

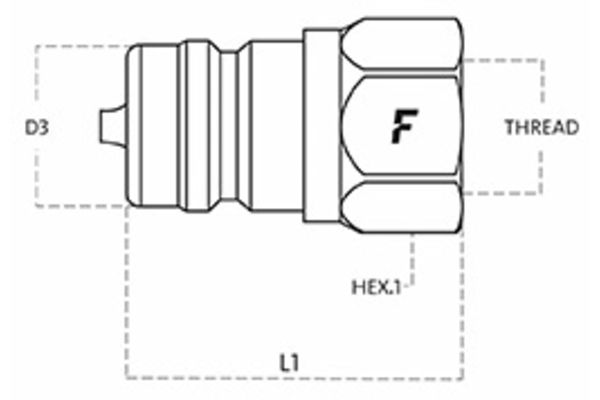

Outer Ø plug [mm]
14,1
14,1
14,1
19,0
18,9
18,9
18,9
20,5
20,5
20,5
20,5
20,5
20,5
20,5
27,9
27,9
27,9
31,3
31,3
44,0
43,9
53,4
53,4
82,0
Length plug [mm]
34,7
34,7
35,5
39,0
39,0
39,0
39,0
44,0
44,0
44,0
44,0
44,0
44,0
44,0
55,0
55,0
55,0
66,0
66,0
73,0
73,0
83,0
83,0
100,0
SW1 [mm]
19
19
19
24
24
24
24
27
27
27
27
27
27
27
34
34
34
41
41
50
50
60
60
75
l/min at ΔP=2 bar
15
15
15
50
50
50
50
75
75
75
75
75
75
75
150
150
150
220
220
340
340
450
450
1000
Quantity


Product info

  • Specifications
    Applications: Agriculture, Construction Equipment, Industrial
    Female or male coupling: Plug
    Material Casing: Steel
    Material sealing: NBR
    Resistance against red rust [h]: 500
    Surface: MATE 500 (CrIII)
    Temperature range [°C]: -25 °C to 125 °C

Benefit

Standard couplings for general purpose applications with poppet valve shut-off system. Faster proprietary profile ( 1/2" size only is interchangeable according to ISO 7241 part A).
