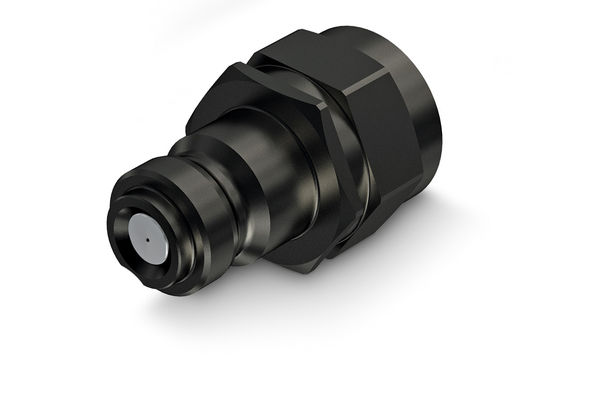

UHP150 male coupling

Couplings for Ultra High Pressure applications (150 MPa series)

To accessories

Detail

Art. No.

UHP150 14NPT M

UHP150 14GMS M

Size

Inch

1/4

working pressure [bar]

1500

Thread + standard

NPT Female ANSI B1.20.3

BSP female-thread (metal sealing) ISO 1179-1

Thread [GA]

1/4

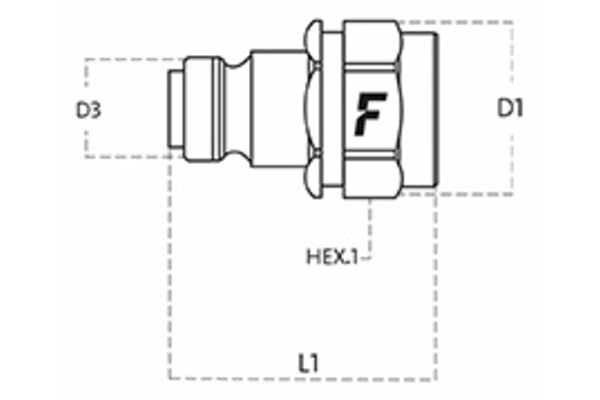

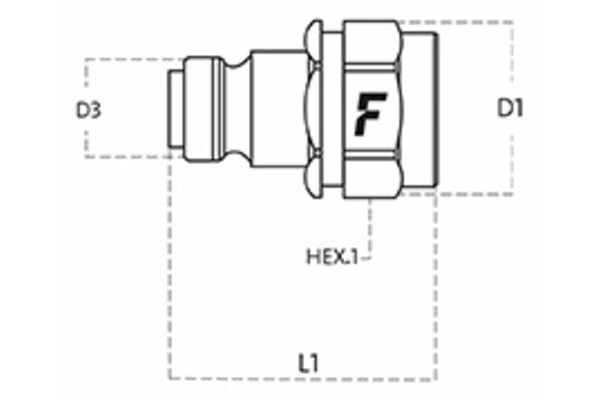

Outer Ø plug [mm]

14,8

Length plug [mm]

38,3

39,0

SW1 [mm]

l/min at ΔP=2 bar

Quantity

Product info

Specifications

Applications:	Industrial and high pressure applications
Female or male coupling:	Plug
Material Casing:	Steel
Material sealing:	NBR
Surface:	CR III & Zn-Ni
Temperature range [°C]:	-25 °C to 100 °C

Benefit

UHP couplings are the most advanced Faster solution for hydraulic applications with ultra high working pressures of 150 MPa and more. Very robust and reliable, they are characterized by redundant visual and mechanical safety systems.
