Product info
-
Specifications

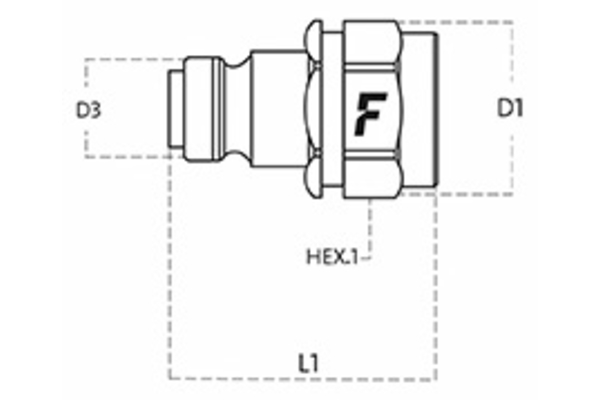

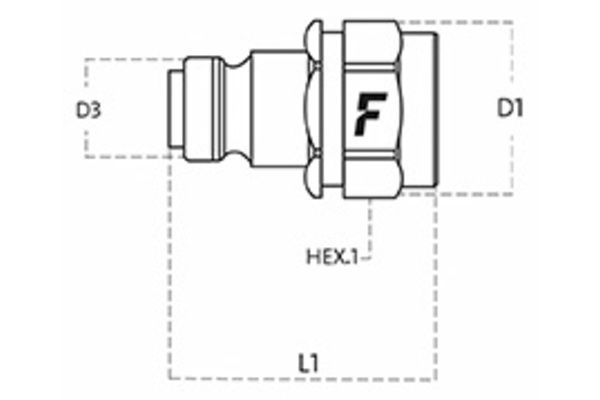

DN: 06 Size: 04 Inch: 1/4 working pressure [bar]: 1500 Thread + standard: BSP female-thread (metal sealing) ISO 1179-1 Thread [GA]: 1/4 Outer Ø plug [mm]: 14,8 Length plug [mm]: 39,0 SW1 [mm]: 22 l/min at ΔP=2 bar: 4 Applications: Industrial and high pressure applications Female or male coupling: Plug Material Casing: Steel Material sealing: NBR Surface: CR III & Zn-Ni Temperature range [°C]: -25 °C to 100 °C
