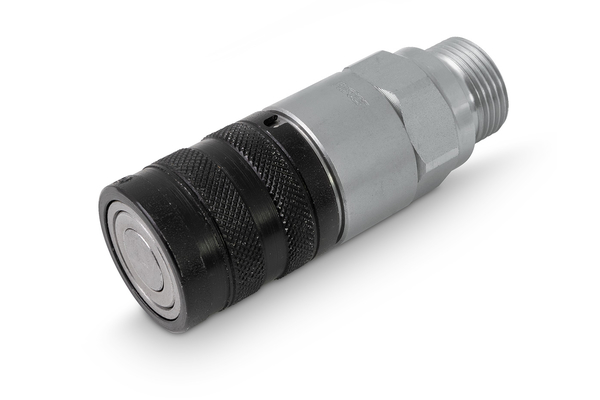

Flat-Face ST-3FF femal coupling (ISO 16028)

To accessories

Detail

Art. No.

ST-3FF06BSP10M

ST-3FF08NMF12M

ST-3FF08BSP12M

ST-3FF12BSP20M

ST-3FF22CEL15-10M

ST-3FF17UNF12M

ST-3FF17JM90-12M

ST-3FF09JM90-12M

Size

Inch

3/8

1/2

3/4

3/8

1/2

working pressure [bar]

350

Thread + standard

BSP female-thread ISO 1179-1

NPT female-thread ANSI B1.20.3

BSP female-thread ISo 1179-1

BSP female-thread ISO 1179-1

Metric male-thread ISO 8434-1

SAE (UNF) female-thread ORB ISO 11926-1

JIC (UN) male-thread 90° ISO 8434-2

Thread [GA]

3/8

1/2

3/4

M22x1,5

1.1/16

9/16

Pipe Ø R [mm]

15L

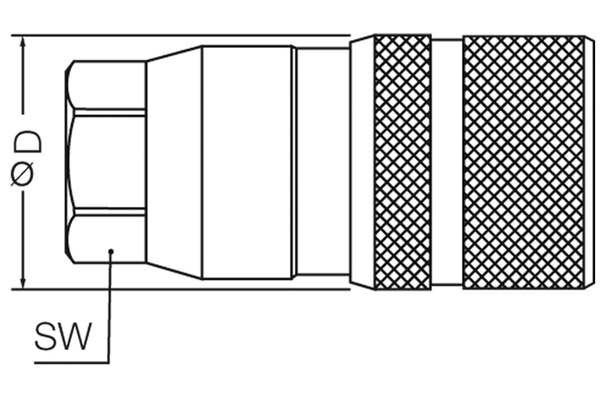

Outer Ø sleeve [mm]

30,0

38,0

48,0

30,0

Length sleeve [mm]

75,0

81,3

81,9

86,8

100,8

Wrench size connection side sleeve

SW1 [mm]

l/min at ΔP=2 bar

Quantity

Product info

Specifications

Applications:	Agriculture, Construction Equipment, Industrial, Offshore (Oil & Gas) applications, Vehicles and road machines
Female or male coupling:	Sleeve
Material Casing:	Steel
Material sealing:	PU (AU), PTFE
Resistance against red rust [h]:	1000
Resistance against white rust [h]:	500
Standard:	ISO 16028
Surface:	Zinc-Nickel
Temperature range [°C]:	-25°C to +100°C

Benefit

ST-FF has been tested with 1.000.000 impulses and exceeds the market standard in wear resistance and working pressure.

Accessories

dust protection

Practical tip

ST-3FF is interchangeable within the ISO16028. Please note that with the ST-3FF it is possible to connect against residual pressure (working pressure, one-way, male or female).
