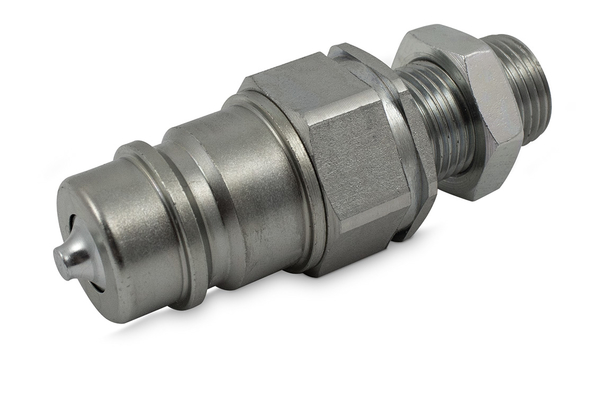

ST-ANV male coupling (ISO 7241-1 A)

For general applications (eg. agricultural technology), compatibility according to ISO 7241-1A

To accessories

Detail

Art. No.

ST-NV08BSP12S

ST-NV08NPT12S

ST-ANV04BSP05S

ST-ANV06BSP06S

ST-ANV12BSP16S

ST-ANV16BSP20S

ST-ANV04NPT05S

ST-ANV06NPT06S

ST-ANV12NPT16S

ST-ANV16NPT20S

Size

Inch

1/2

1/4

3/8

3/4

1/4

3/8

3/4

working pressure [bar]

300

350

300

250

350

300

250

Thread + standard

BSP female DIN 3852

NPT female thread DIN 3852

BSP female DIN 3852

NPT female thread DIN 3852

Thread [GA]

1/2

1/4

3/8

3/4

1/4

3/8

3/4

Outer Ø plug [mm]

20,5

11,8

17,3

29,1

34,3

11,8

17,3

29,1

34,3

Length plug [mm]

50,7

35,5

36,5

57,0

59,5

35,0

42,5

57,0

65,5

Wrench size connection side plug

burst pressure plug uncoupled [bar]

100

burst pressure coupled [bar]

120

burst pressure sleeve uncoupled [bar]

140

SW1 [mm]

l/min at ΔP=2 bar

100

180

106

189

Quantity

Product info

Specifications

Applications:	industry, agricultural technology , power units, construction machines
Female or male coupling:	plug
Material:	C-steel, nitrified
Material Casing:	Steel
Material sealing:	NBR 85 Shore
Material support ring:	PTFE
Standard:	ISO 7241-1A
Surface:	galvanised and Cr III passivated
Temperature range [°C]:	-20°C / +100°C

Benefit

Interchangeable according to the ISO7241-1A standard. Equipped with a large number of locking balls to reduce the "brinelling-effect" and therefore extend the lifetime of coupling.
