Product info
-
Specifications

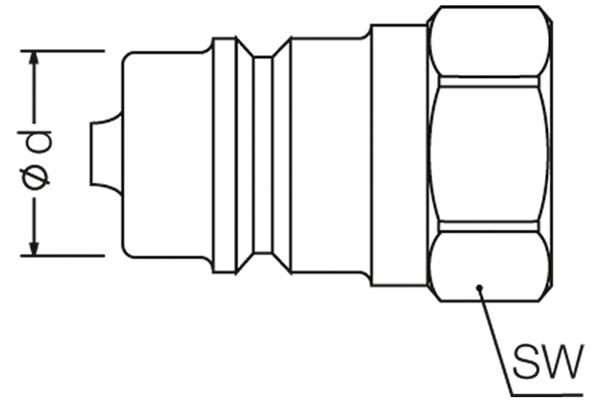

Size: 3 DN: 12 Size: 08 Inch: 1/2 working pressure [bar]: 300 Thread + standard: BSP female DIN 3852 Thread [GA]: 1/2 Outer Ø plug [mm]: 20,5 Length plug [mm]: 50,7 SW1 [mm]: 27 l/min at ΔP=2 bar: 50 Applications: industry, agricultural technology , power units, construction machines Female or male coupling: plug Material: C-steel, nitrified Material Casing: Steel Material sealing: Standard NBR, 85 Shore. Material support ring: PTFE Product title long: Series ST-NV male coupling. Series ST-SV male coupling Product title short: male coupling Surface: galvanised and Cr III passivated Temperature range [°C]: -20°C / +100°C
