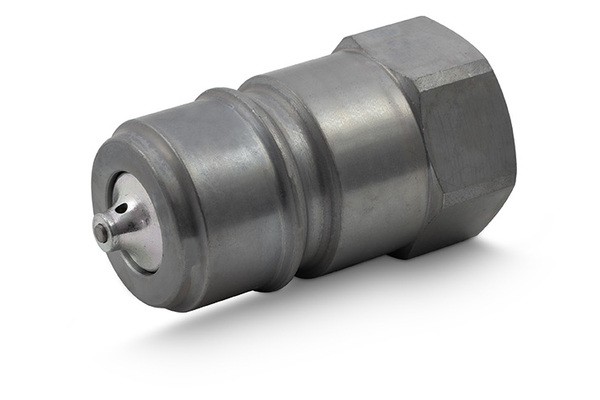

ST-C525 UDK male coupling

Scandinavian standard for applications in the construction industry, can be coupled under pressure, compatibility with T series of Tema

To accessories

Detail

Art. No.

ST-C525UDK06BSP10S

ST-C525UDK08BSP12S

ST-C525UDK12BSP20S

ST-C525UDK16BSP25S

Size

Inch

3/8

1/2

3/4

working pressure [bar]

280

250

200

250

Thread + standard

BSP female DIN 3852

Thread [GA]

3/8

1/2

3/4

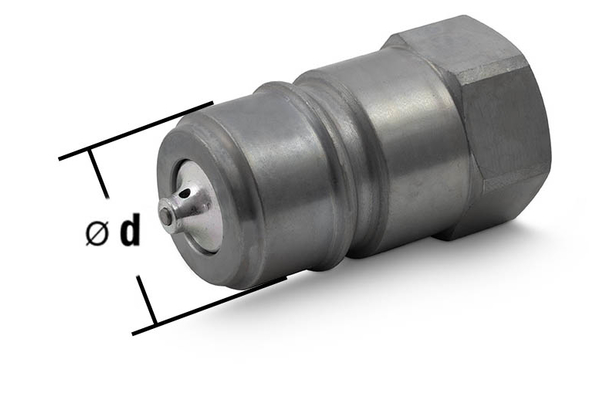

Outer Ø plug [mm]

20,0

25,0

32,7

41,0

Length plug [mm]

39,0

43,0

47,0

57,0

SW1 [mm]

l/min at ΔP=2 bar

45 L/min

75 L/min

163 L/min

250 L/min

Quantity

Product info

Specifications

Applications:	construction machinery, industry, agricultural technology , power units, construction machines
Female or male coupling:	plug
Material Casing:	Steel
Material sealing:	NBR
Surface:	galvanised and Cr III passivated
Temperature range [°C]:	-30°C to +100°C

Benefit

female part with safety sleeve, connectable under full working pressure

Accessories

dust protection

Practical tip

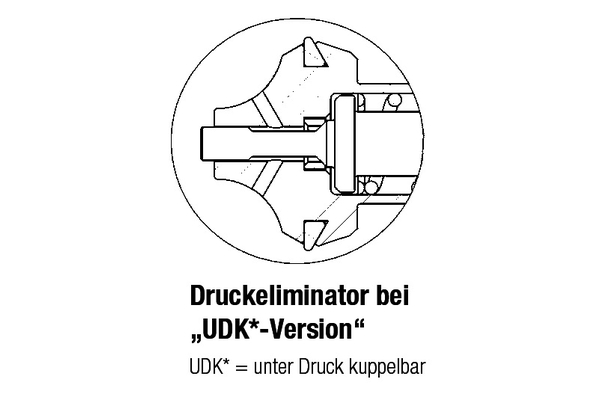

If you have to connect against residual pressure please combine the UDK version with the standard version. = UDK version on the side which is pressurized and the counterpart the standard version.
