Product info
-
Specifications

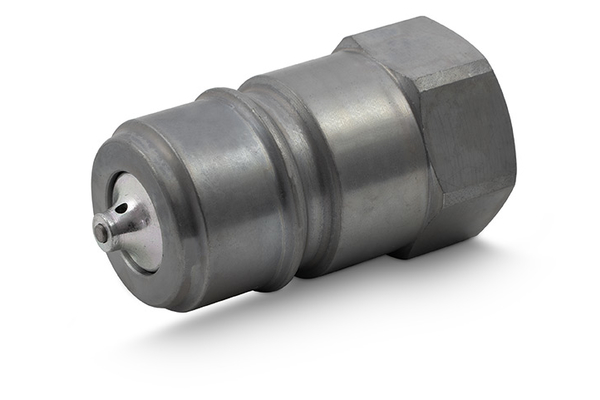

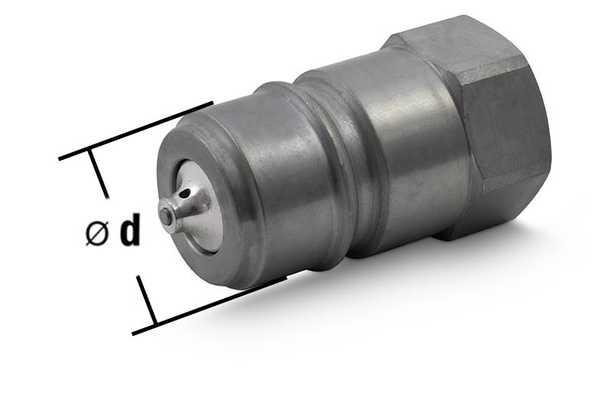

Size: 6 DN: 25 Size: 16 Inch: 1 working pressure [bar]: 250 Thread + standard: BSP female DIN 3852 Thread [GA]: 1 Outer Ø plug [mm]: 41,0 Length plug [mm]: 57,0 SW1 [mm]: 45 l/min at ΔP=2 bar: 250 L/min Applications: construction machinery, industry, agricultural technology , power units, construction machines Female or male coupling: plug Material Casing: Steel Material sealing: NBR Product title long: Series ST-C525 male coupling. Product title short: male coupling Surface: galvanised and Cr III passivated Temperature range [°C]: -30°C to +100°C wrong type: false
